Instrument Cluster Schematics (Power, Grounds, and DLC)

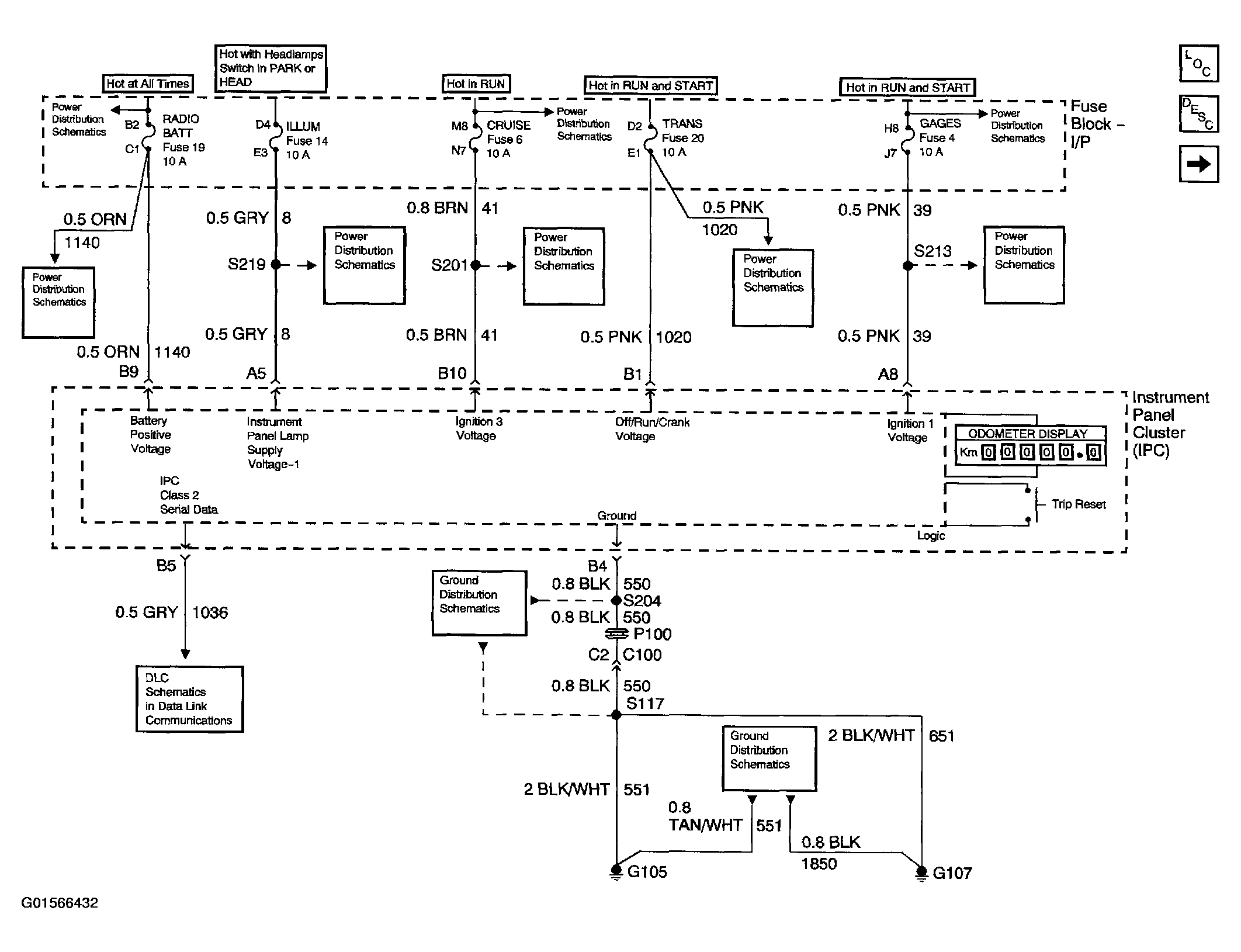

Fig 1: Instrument Cluster Schematics (Power, Grounds, And DLC)
G01566432Courtesy of GENERAL MOTORS CORP.

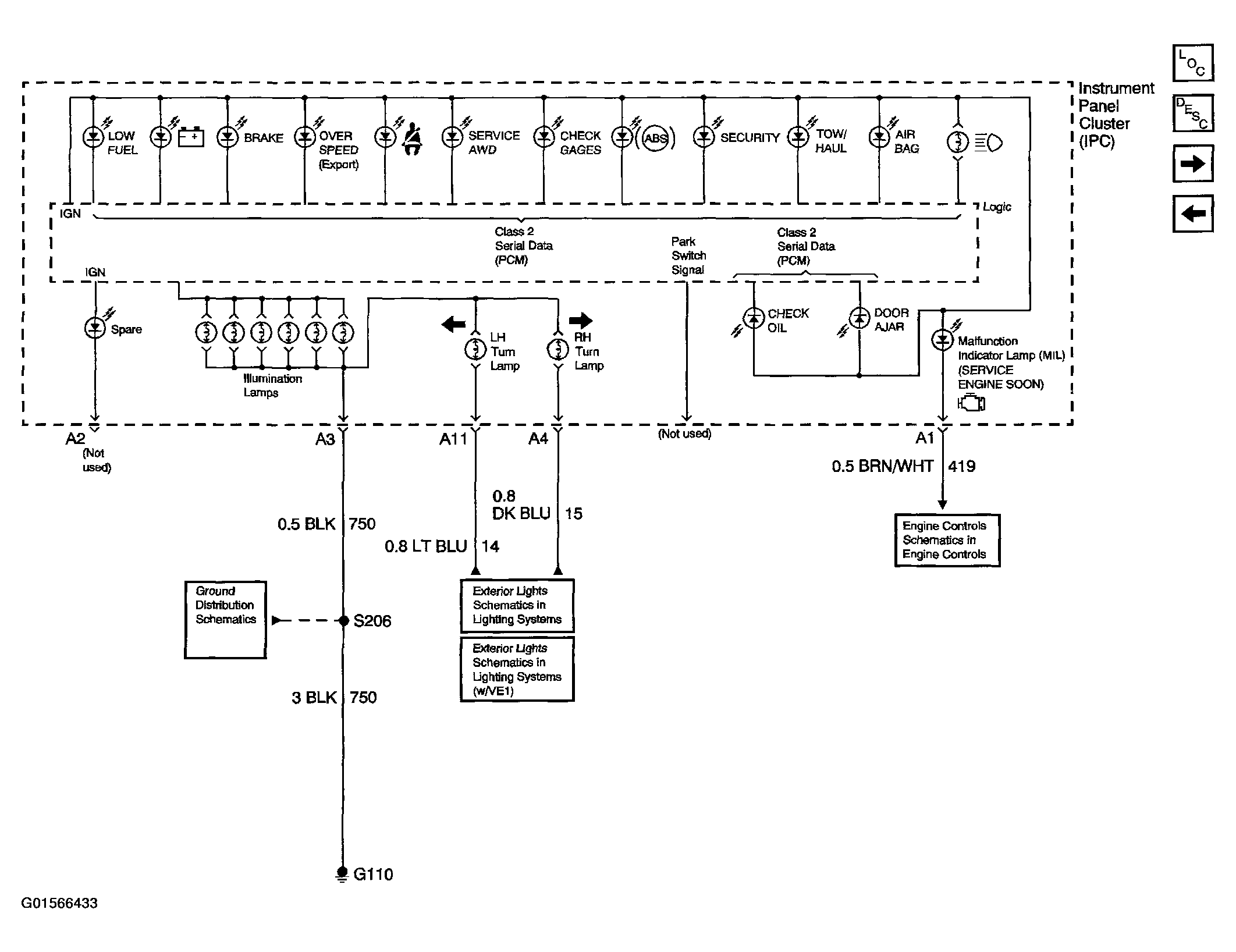

Fig 2: Instrument Cluster Schematics (Indicators)
G01566433Courtesy of GENERAL MOTORS CORP.

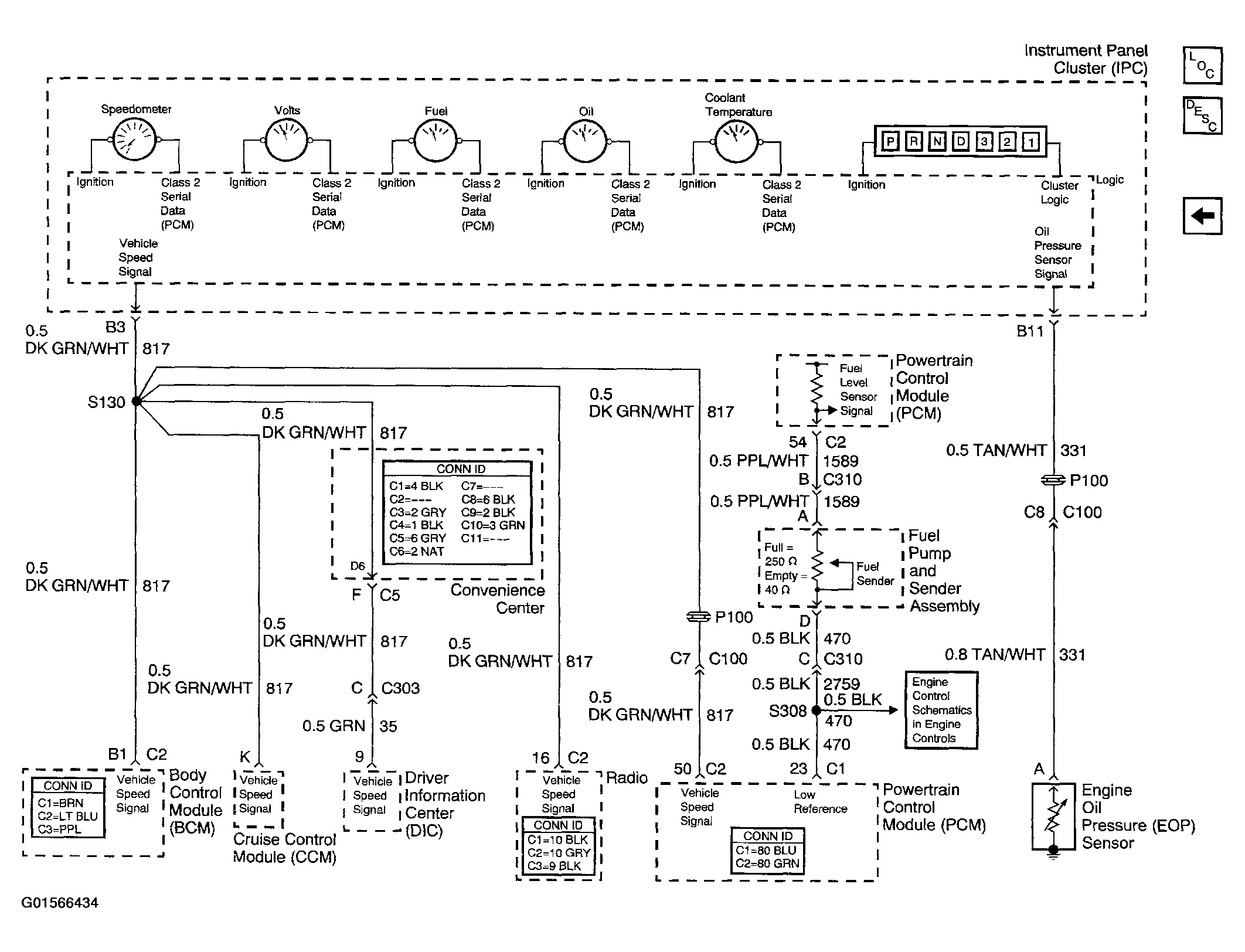

Fig 3: Instrument Cluster Schematics (Gages)
G01566434Courtesy of GENERAL MOTORS CORP.
