Installation Procedure

  1. Install the instrument panel cluster trim plate.

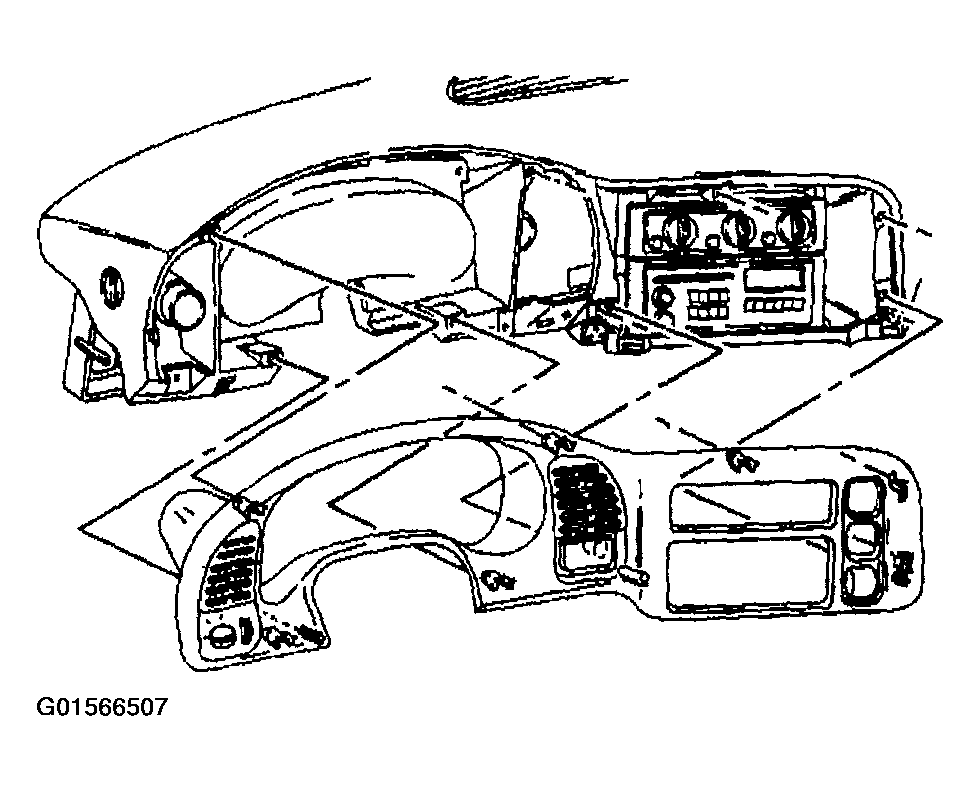

    Fig 1: Installing Instrument Panel Cluster Trim Plate To Instrument Panel
    G01566507Courtesy of GENERAL MOTORS CORP.
  2. Install the accessory switch and the headlamp switch to the instrument cluster trim plate by snapping into place.
  3. Install the headlamp switch and accessory switch electrical connectors.
  4. Install the instrument panel cluster trim plate by aligning the retainers to the opening in the instrument panel and push in place until fully seated.
  5. Move gear selector into PARK position, turn the ignition to the OFF position and release the park brake.
