Removal Procedure

  1. Remove the instrument panel extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT .
  2. Remove the screws that retain the knee bolster to the instrument panel.
  3. Pull back on the knee bolster in order to release the retainers from the instrument panel.
  4. Remove the knee bolster.

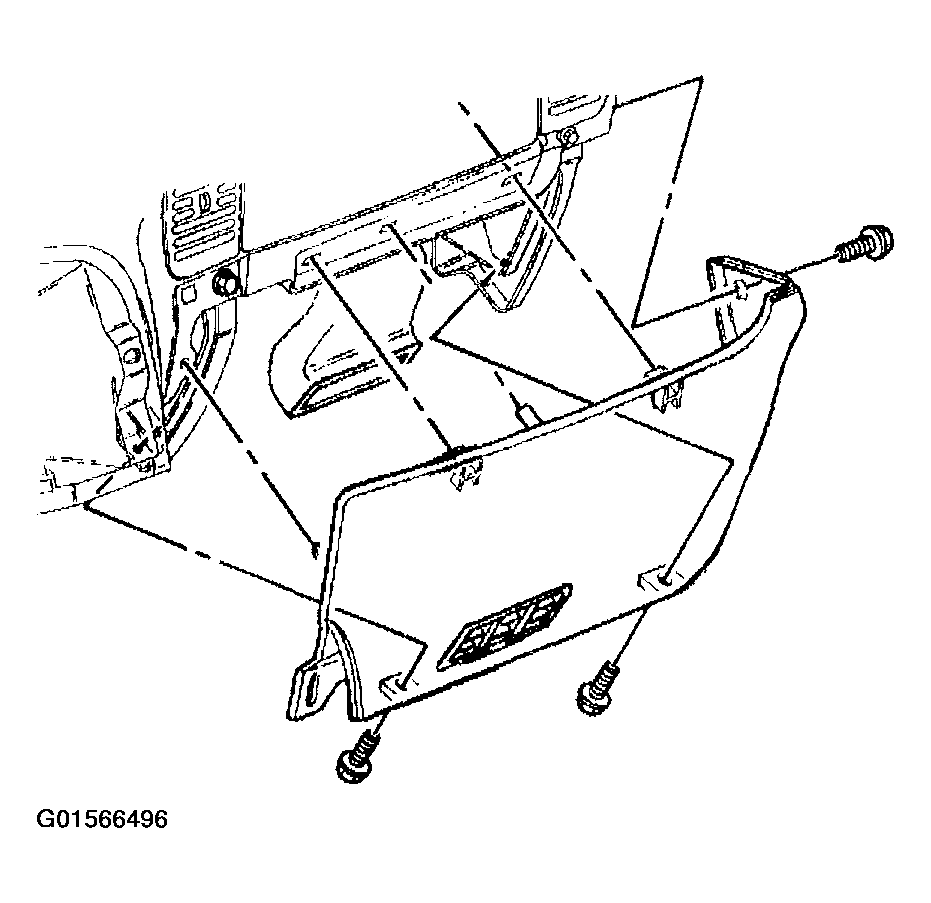

    Fig 1: Removing Knee Bolster From Instrument Panel
    G01566496Courtesy of GENERAL MOTORS CORP.
