Installation Procedure

  1. Install the knee bolster.

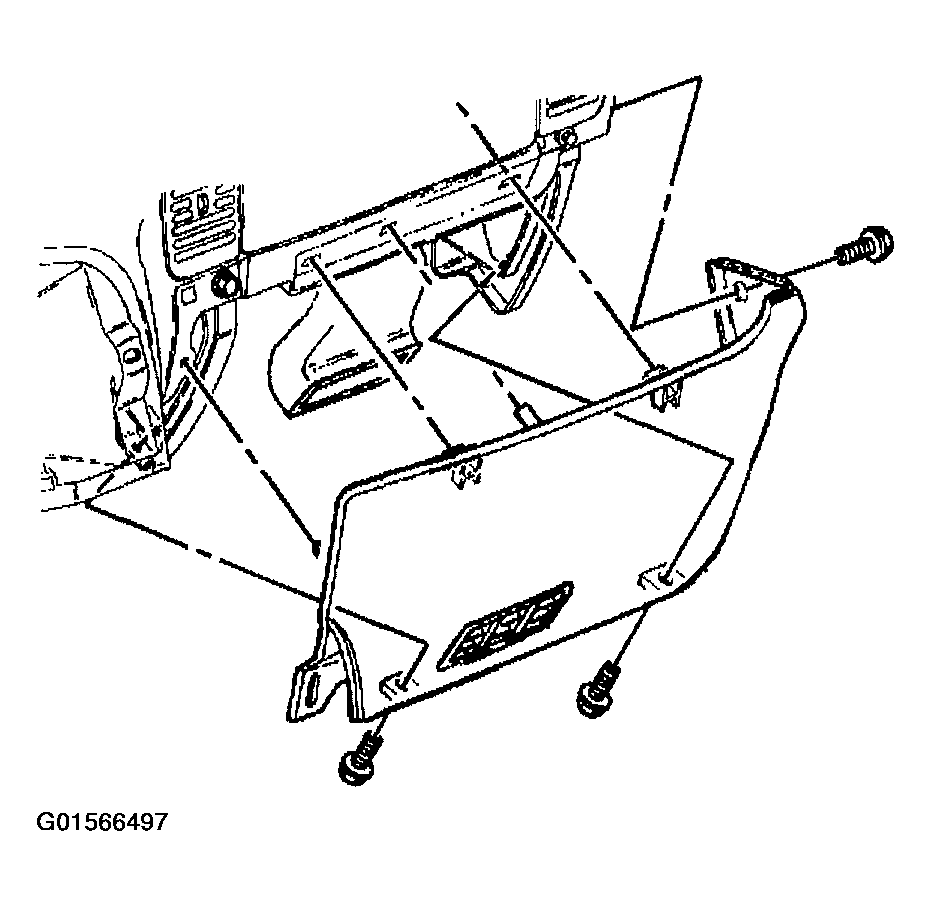

    Fig 1: Installing Knee Bolster To Instrument Panel
    G01566497Courtesy of GENERAL MOTORS CORP.
  2. Install the knee bolster to the instrument panel:
    1. 2.1. Align the retainers.
    2. 2.2. Press the panel into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws that retain the bolster to the instrument panel.

    Tighten

    Tighten the knee bolster screws to 8 N.m (71 lb in).

  4. Install the instrument panel extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT .
