Removal Procedure

  1. Remove the screws that retain the bolster to the instrument panel.

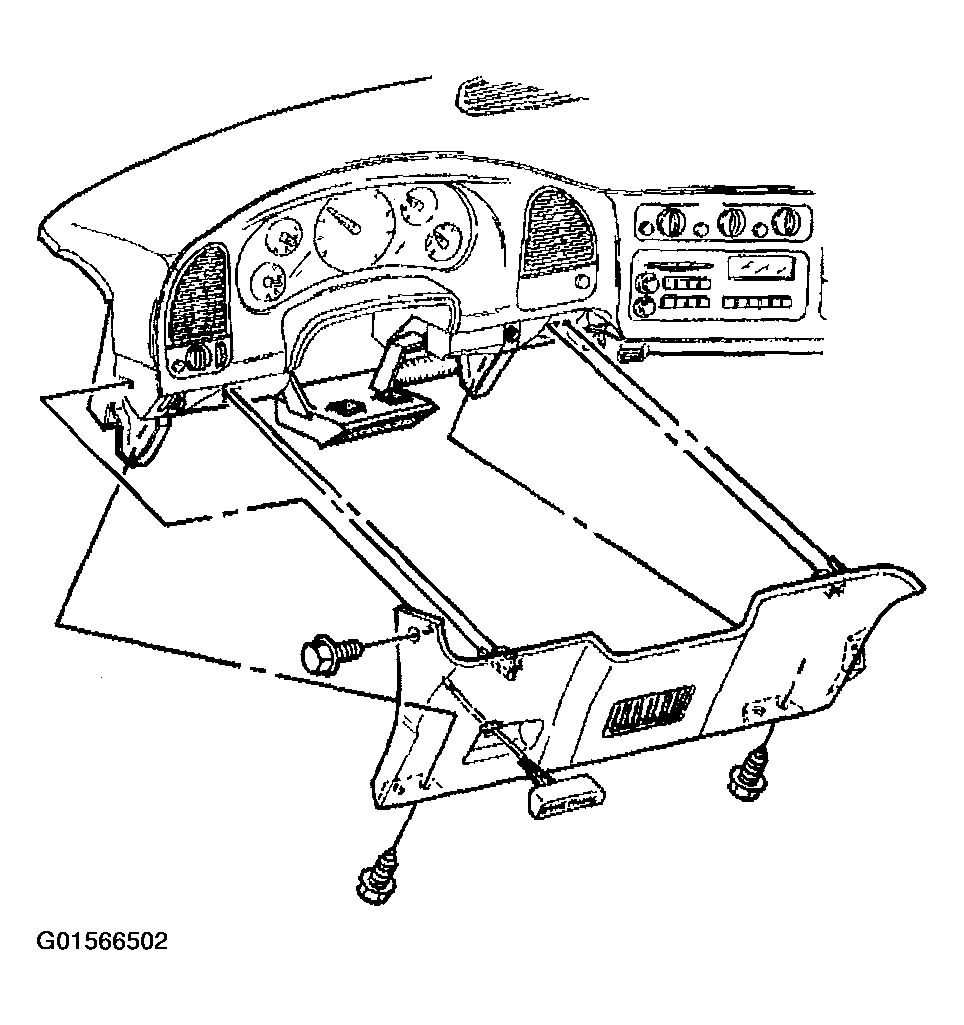

    Fig 1: Removing Screws That Retain Bolster To Instrument Panel
    G01566502Courtesy of GENERAL MOTORS CORP.
  2. Pull back on the bolster in order to release the two retainers and remove the bolster.
  3. Remove the parking brake release lever from the knee bolster.
