Installation Procedure

1. Install the parking brake release lever to the knee bolster.
2. Install the knee bolster:
   1. 2.1. Align the retainers.
   2. 2.2. Press the panel into place.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
3. Install the screws that retain the knee bolster to the instrument panel.

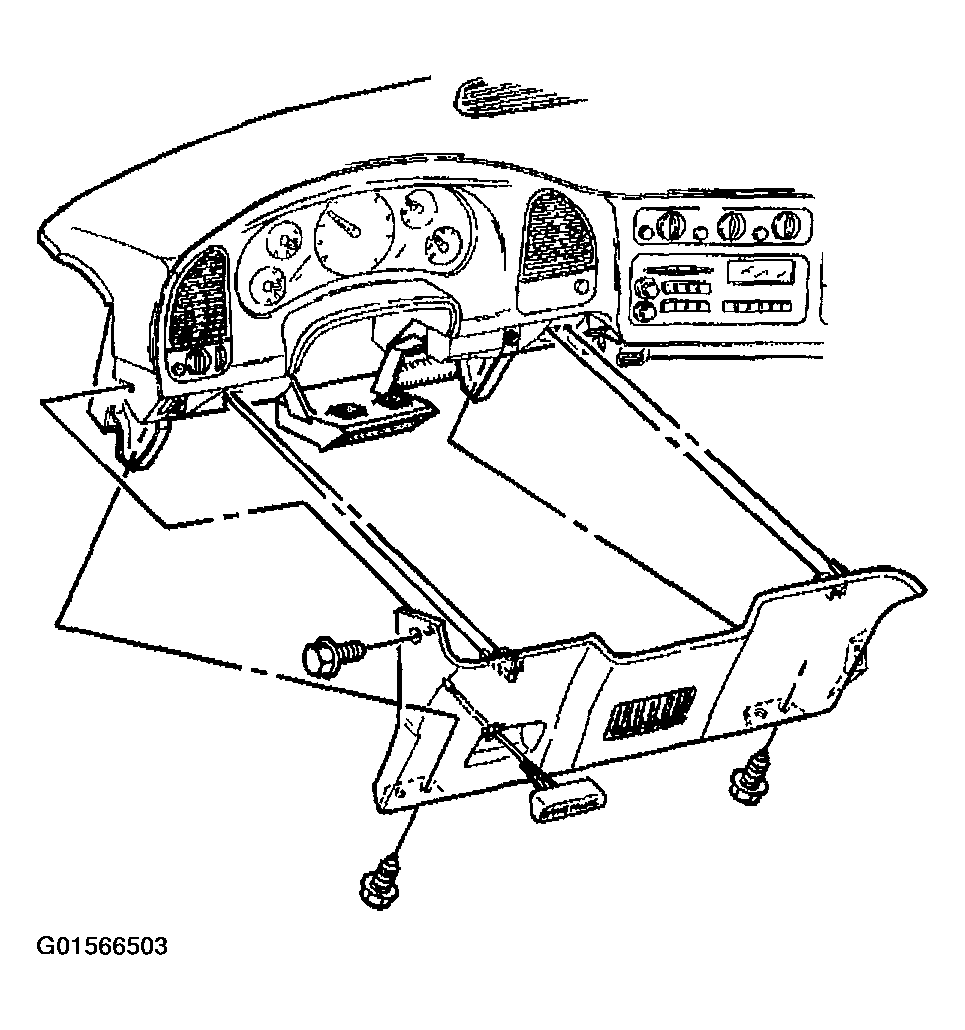

   Fig 1: Installing Screws That Retain Knee Bolster To Instrument Panel

   Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the knee bolster screws to 8 N.m (71 lb in).
