Removal Procedure

  1. Remove the passenger's knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .

    Important:  Do not remove the instrument panel to replace right or right center knee bolster brackets.

  2. Roll the instrument panel down. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT .
  3. Remove the knee bolster bracket right side screws.

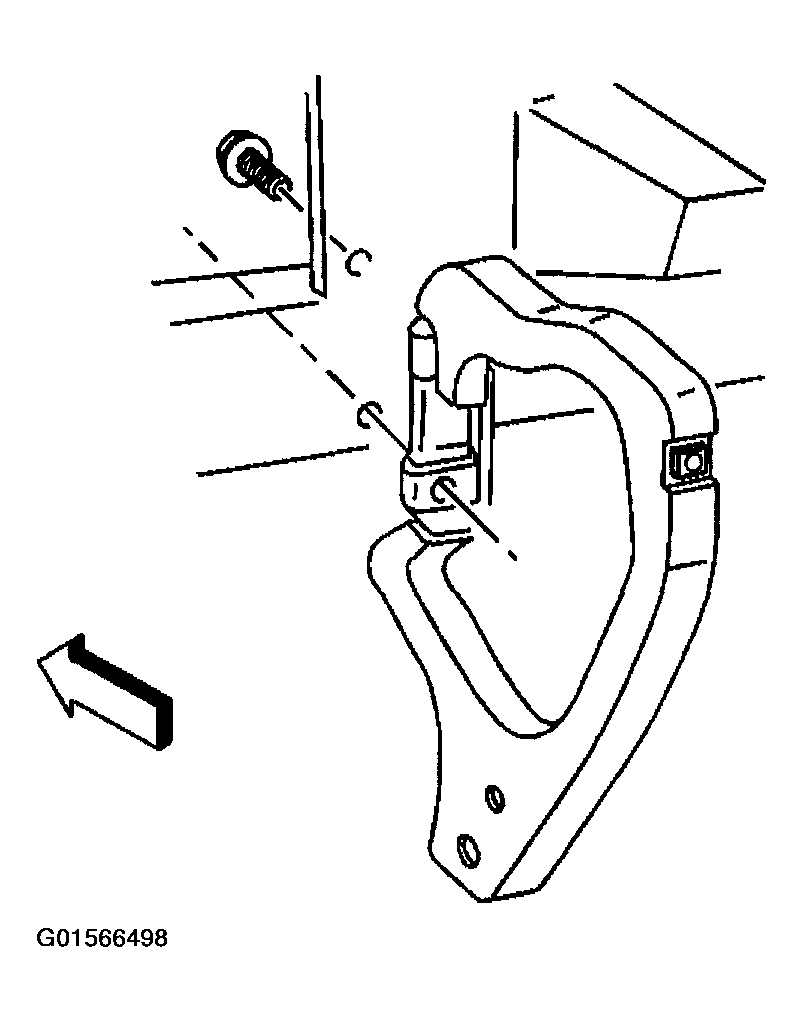

    Fig 1: Knee Bolster Bracket Right Side Screws
    G01566498Courtesy of GENERAL MOTORS CORP.
  4. Remove the knee bolster bracket right side.
  5. Remove the knee bolster bracket right center screws.

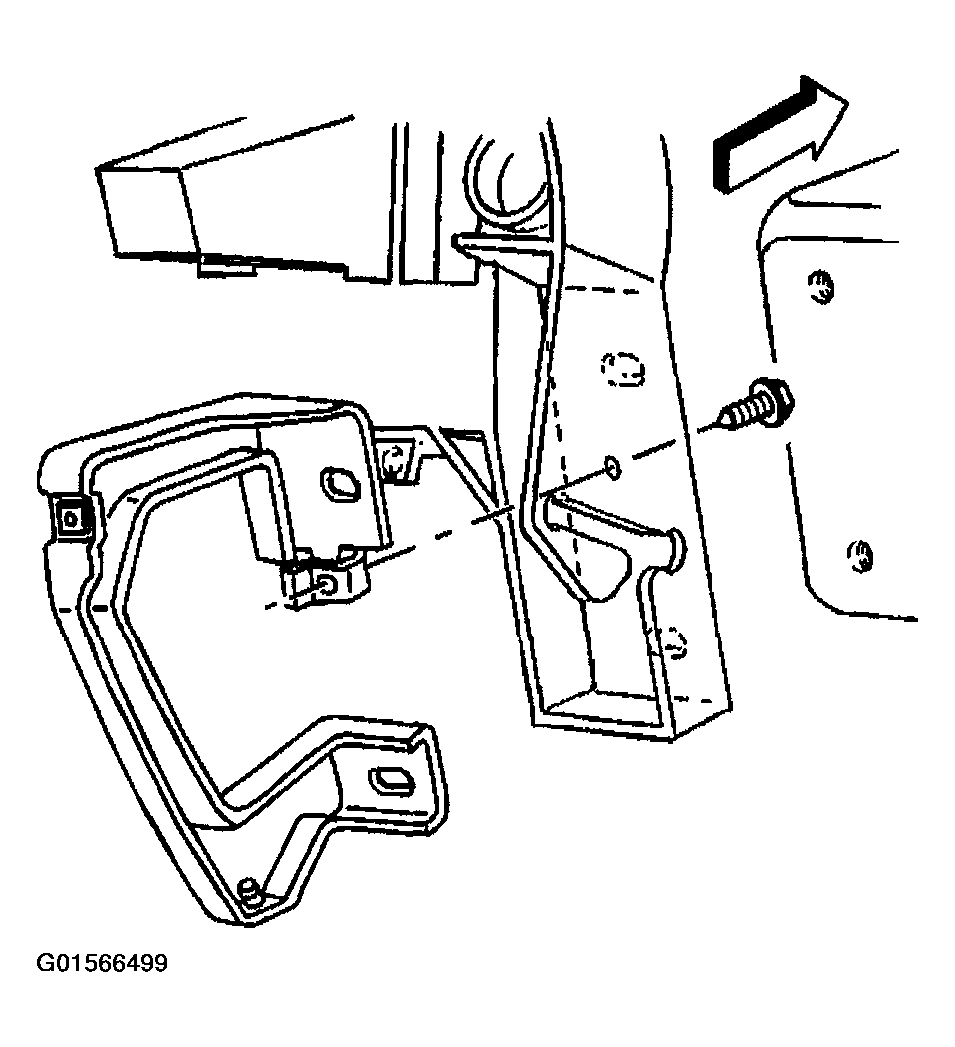

    Fig 2: Knee Bolster Bracket Right Center Screws
    G01566499Courtesy of GENERAL MOTORS CORP.
  6. Remove the knee bolster bracket right center.
