Installation Procedure

  1. Install the knee bolster bracket right center.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the knee bolster bracket right center screws.

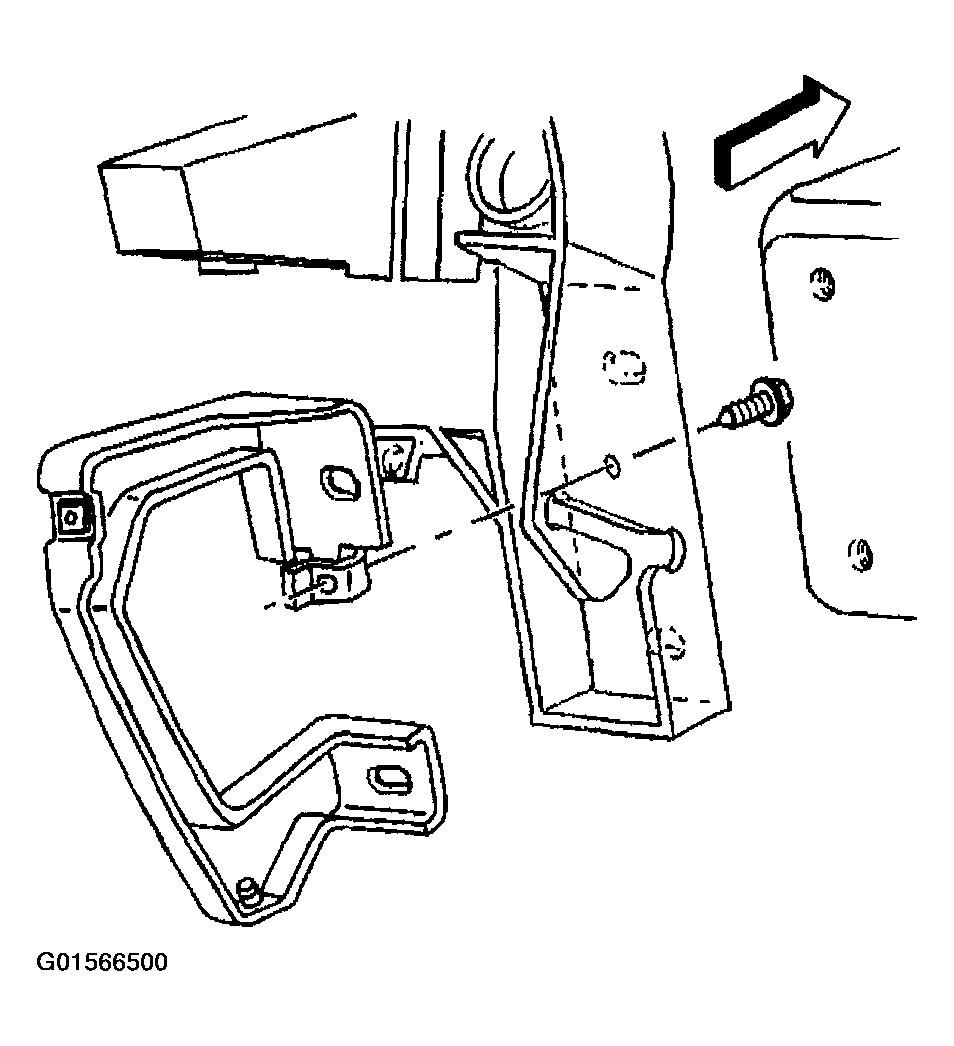

    Fig 1: Knee Bolster Bracket Right Center Screws
    G01566500Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the knee bolster bracket right center screws to 8 N.m (71 lb in).

  3. Install the knee bolster bracket right side. Install the knee bolster bracket right side screws.

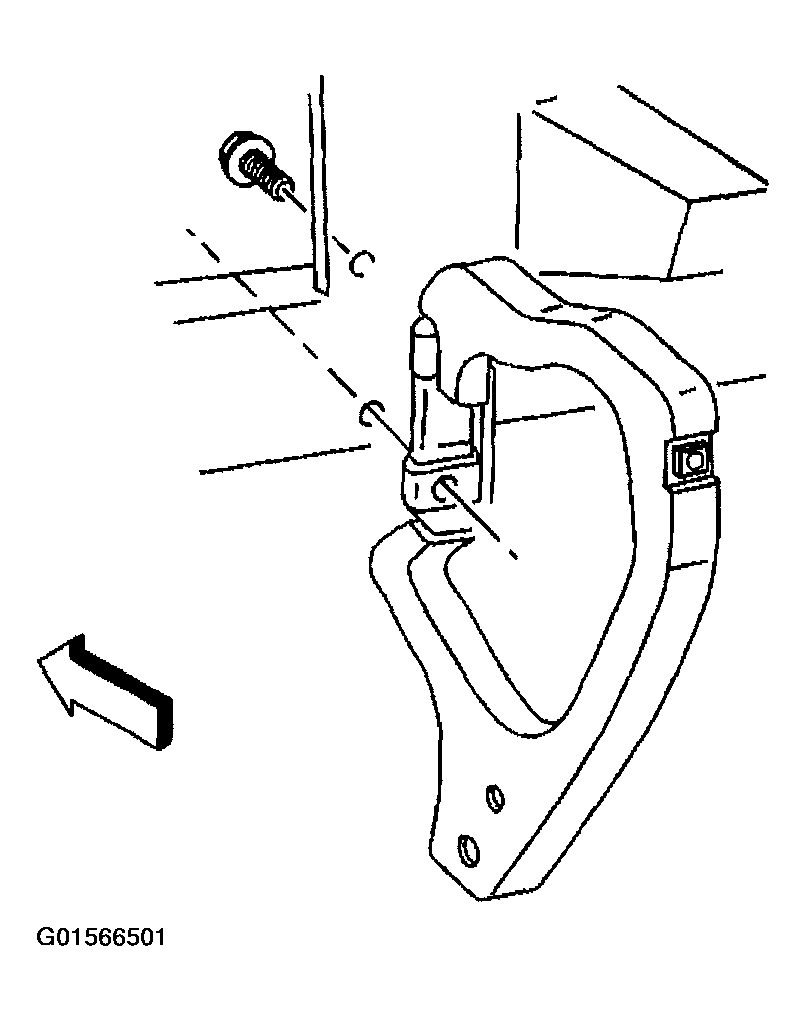

    Fig 2: Knee Bolster Bracket Right Side Screws
    G01566501Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the knee bolster bracket right side screws to 8 N.m (71 lb in).

  4. Roll the instrument panel up. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT .
  5. Install the passenger's knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .
