Removal Procedure

  1. Remove the driver's knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT .
  2. Remove the bolts that retain the brackets to the instrument panel trim pad.

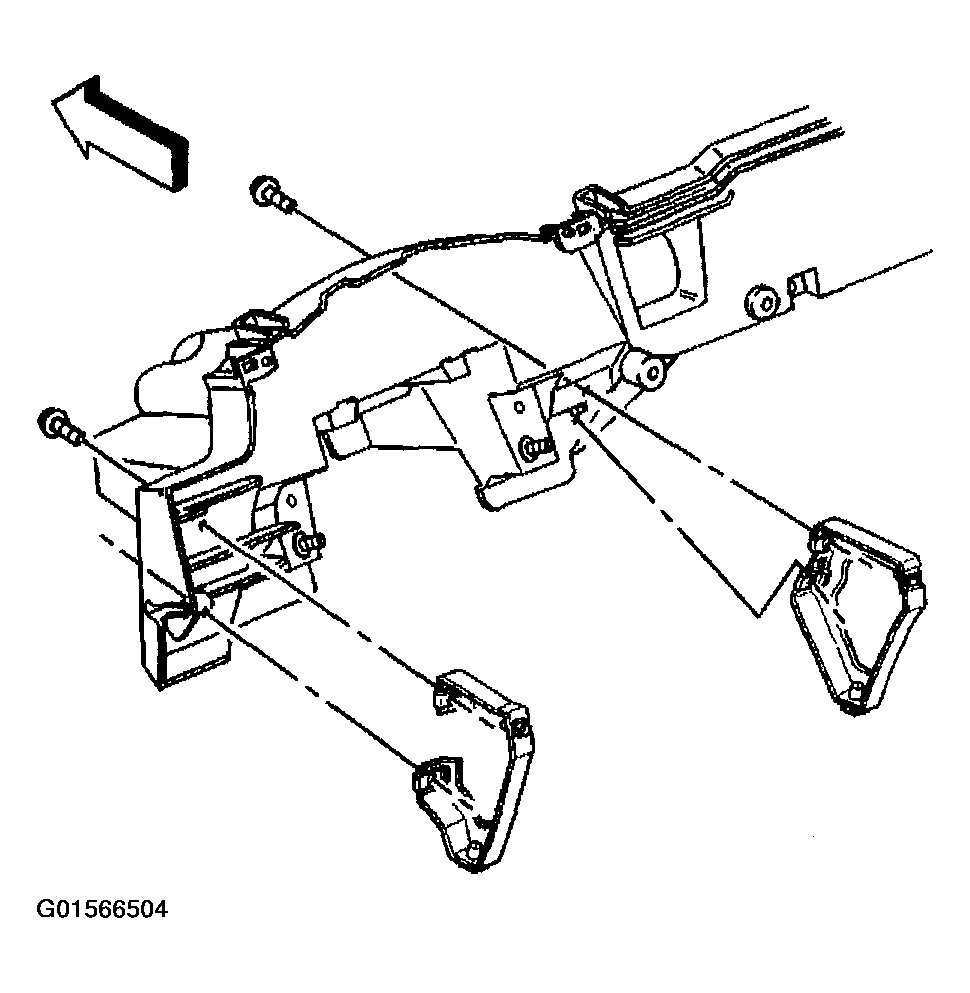

    Fig 1: Removing Bolts That Retain Knee Bolster Brackets To Instrument Panel Carrier
    G01566504Courtesy of GENERAL MOTORS CORP.
  3. Roll the instrument panel back, but do not remove the instrument panel. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT .
  4. Remove the bolts that retain the knee bolster brackets to the instrument panel carrier.
  5. Remove the knee bolster brackets from the vehicle.
