Removal Procedure

  1. Remove the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Remove the four screws the retain the instrument panel cluster to the instrument panel.

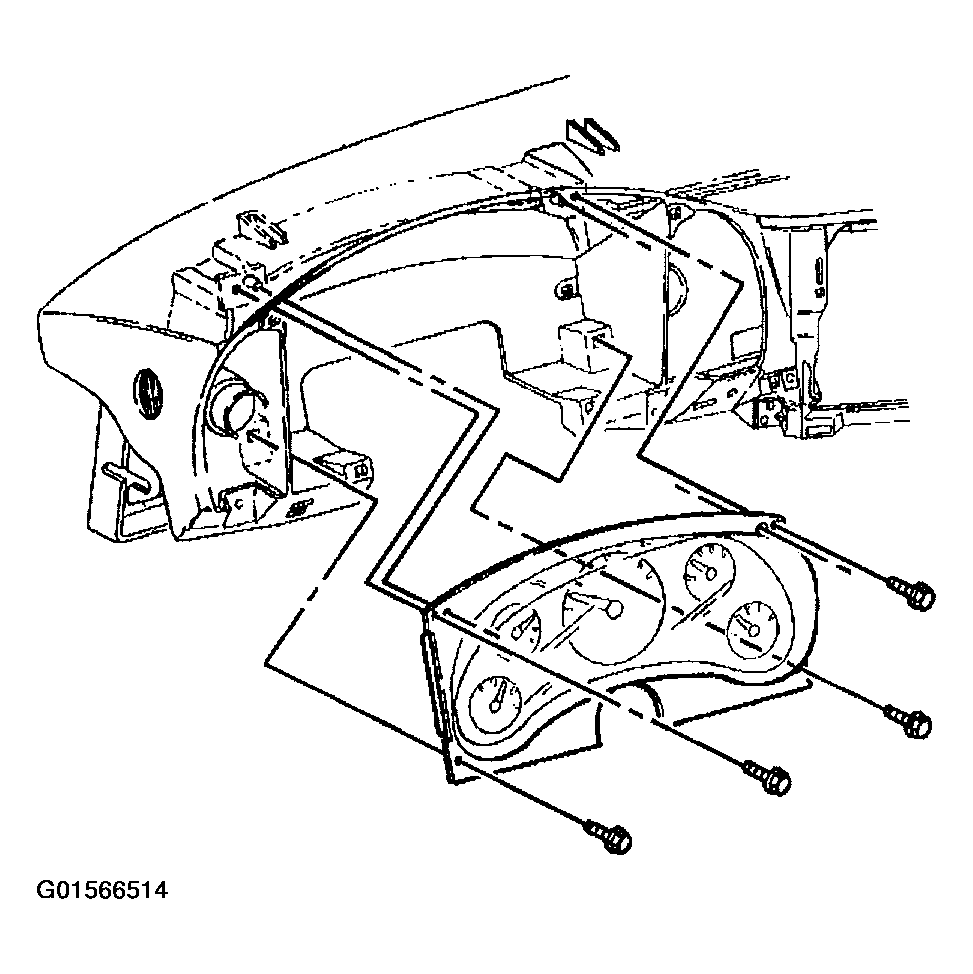

    Fig 1: Instrument Panel Cluster Retain Four Screws
    G01566514Courtesy of GENERAL MOTORS CORP.
  3. Gently pull the instrument cluster straight out.
