Removal Procedure

  1. Gently pull the plate away from the instrument panel extension until all the retainers are released.
  2. Disconnect the electrical connectors, as needed.
  3. Remove the plate from the instrument panel extension.

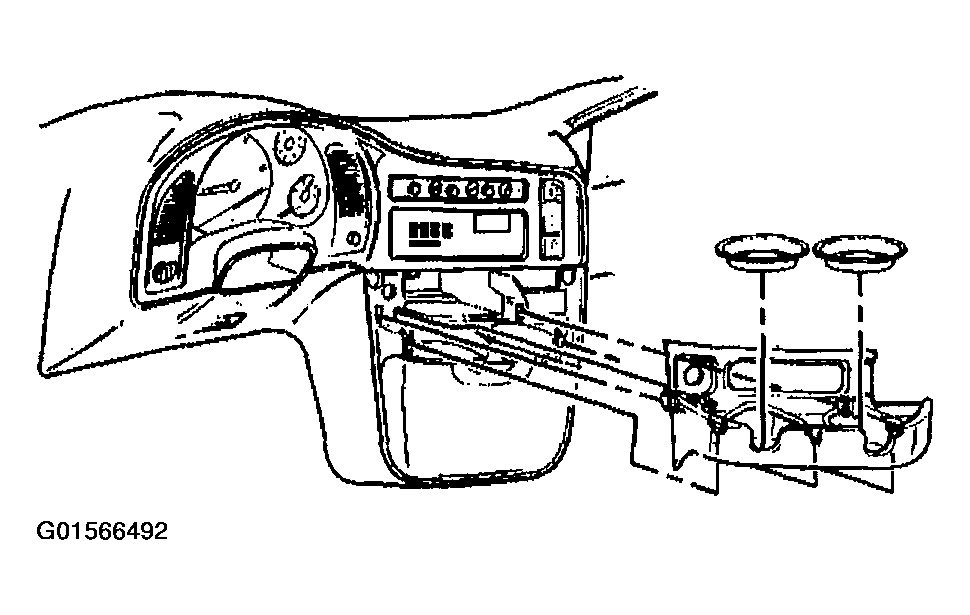

    Fig 1: Removing Plate From Instrument Panel Extension
    G01566492Courtesy of GENERAL MOTORS CORP.
