Installation Procedure

  1. Install the plate to the instrument panel extension.

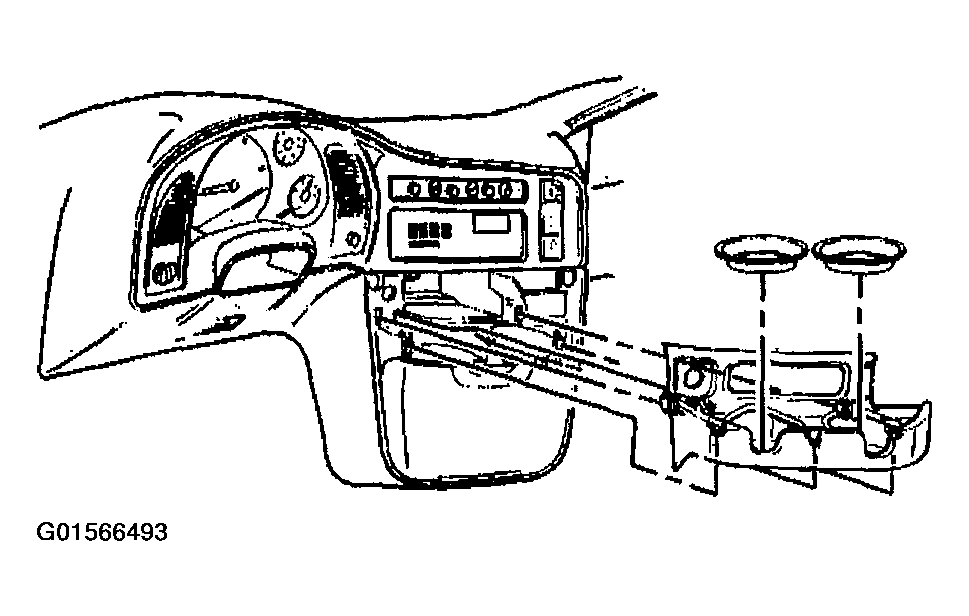

    Fig 1: Installing Plate To Instrument Panel Extension
    G01566493Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors, as needed.
  3. Press the plate into place until all the retainers are fully seated.
