Removal Procedure

  1. Remove the caps that cover the extension screws.
  2. Remove the screws from the extension.
  3. Remove the nuts at the bottom of the extension.
  4. Pull toward the rear of the vehicle in order to remove the extension from the instrument panel.
  5. Disconnect the electrical connectors.

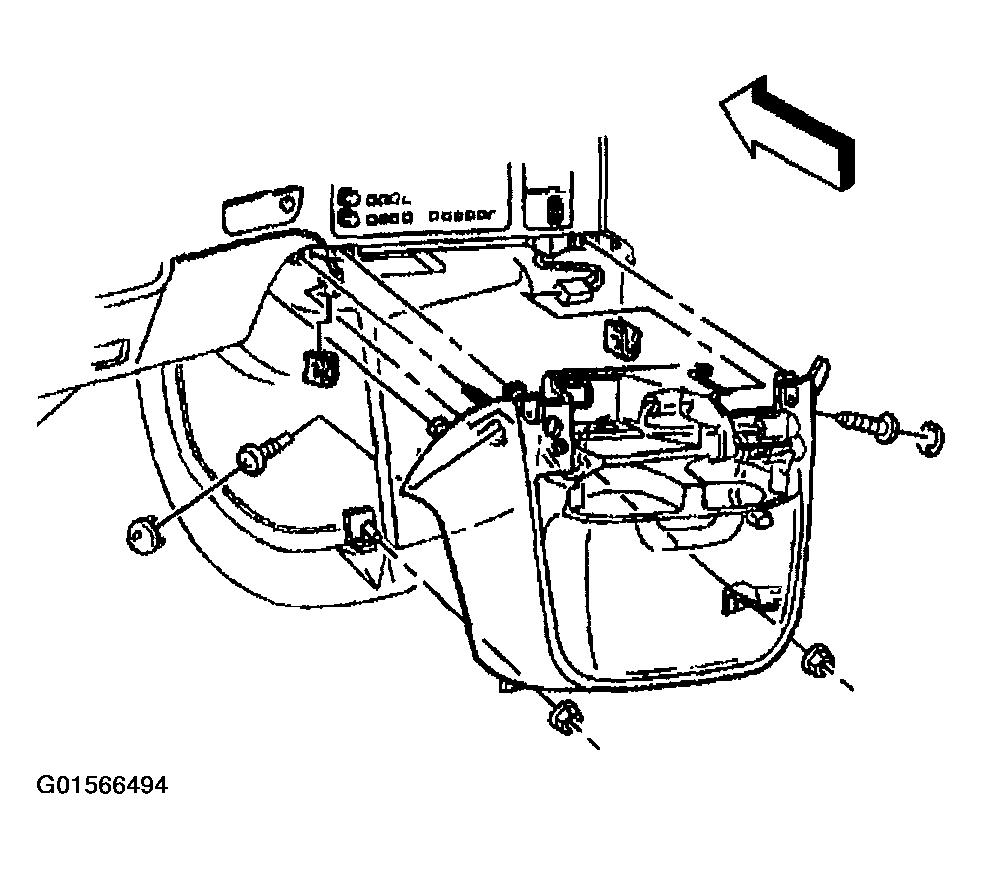

    Fig 1: Removing Screws & Nuts From Extension
    G01566494Courtesy of GENERAL MOTORS CORP.
