Removal Procedure

  1. Remove the instrument panel from the vehicle. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT .
  2. Remove the bolts that retain the carrier support to the cowl side panel.
  3. Remove the carrier support from the vehicle.

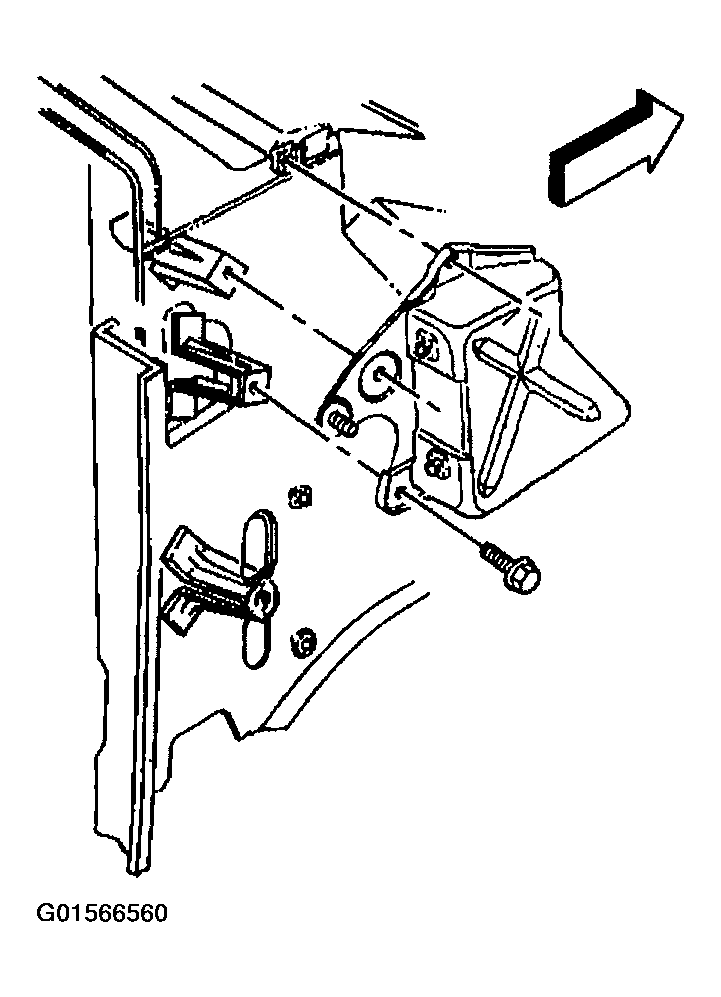

    Fig 1: Removing Carrier Support Bolts To Cowl Side Panel
    G01566560Courtesy of GENERAL MOTORS CORP.
