Removal Procedure

  1. Remove the overhead console (3). Refer to CONSOLE REPLACEMENT - OVERHEAD .
  2. Remove the display lens and the switch plate (1).

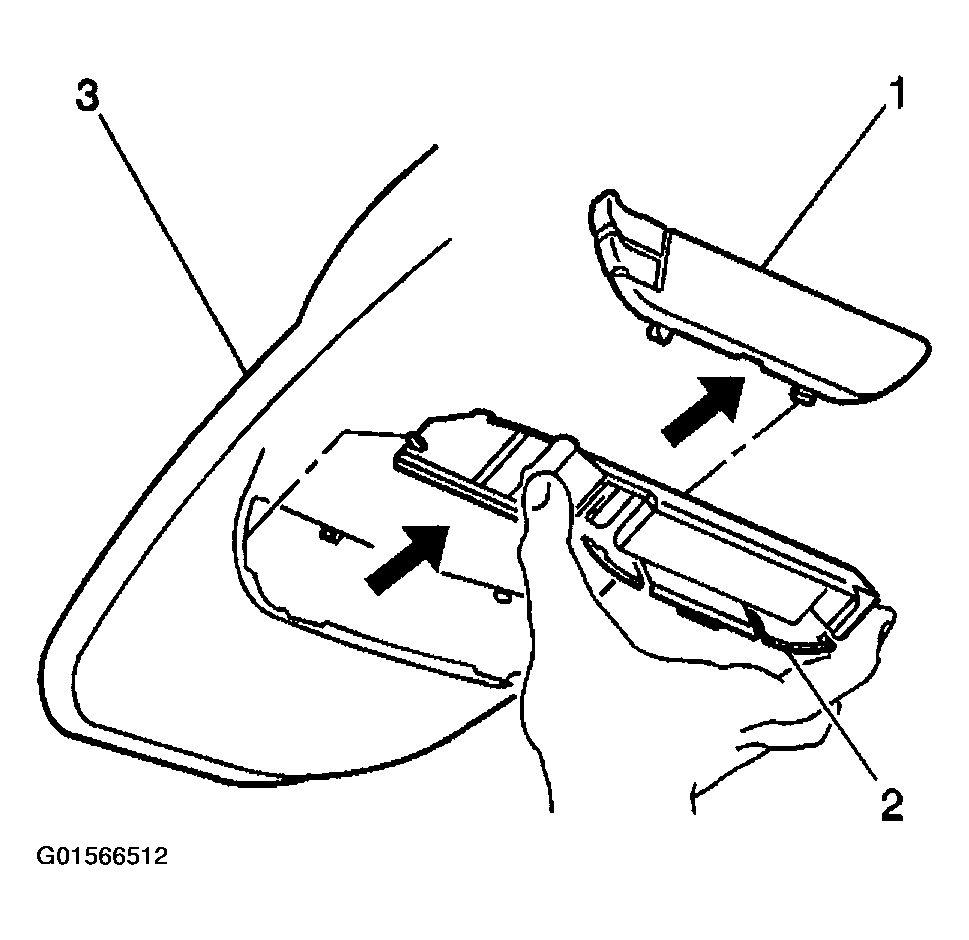

    Fig 1: Display Lens & Switch Plate
    G01566512Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors.
  4. Remove the temperature/compass electronic display module (2).
