Installation Procedure

  1. Install the temperature/compass electronic display module (2).
  2. Connect the electrical connectors.
  3. Install the display lens and the switch plate (1).

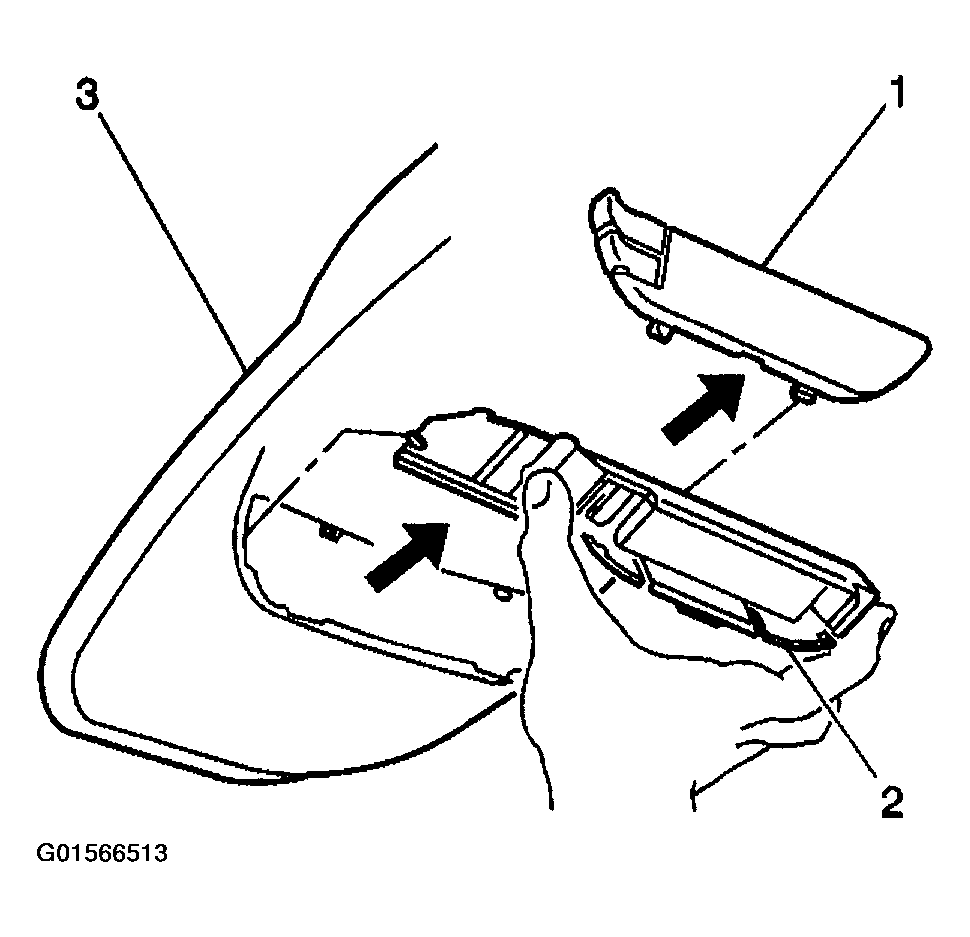

    Fig 1: Display Lens & Switch Plate
    G01566513Courtesy of GENERAL MOTORS CORP.
  4. Install the overhead console (3). Refer to CONSOLE REPLACEMENT - OVERHEAD .
  5. Recalibrate the compass. Refer to ELECTRONIC COMPASS CALIBRATION .
