Removal Procedure

  1. Remove the instrument panel extension trim plate. Refer to INSTRUMENT PANEL (I/P) EXTENSION TRIM PLATE REPLACEMENT .
  2. Squeeze the two retainers and pull out in order to remove the storage compartment.

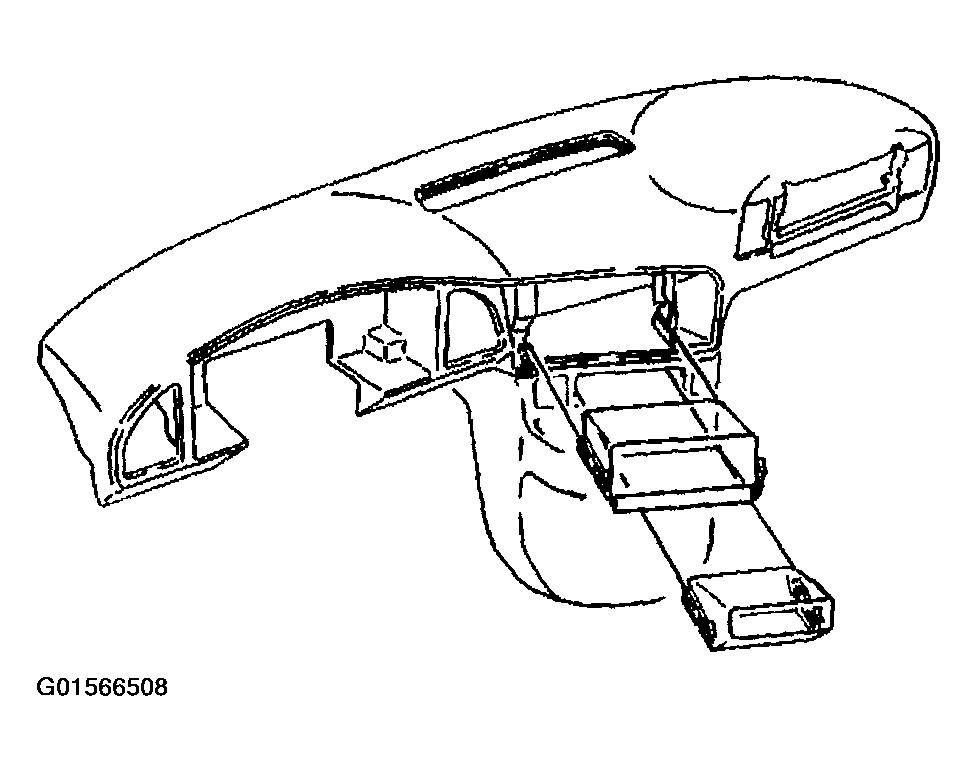

    Fig 1: Instrument Panel Extension Trim Plate
    G01566508Courtesy of GENERAL MOTORS CORP.
