Installation Procedure

  1. Snap the storage compartment into place.
  2. Install the instrument panel extension trim plate. Refer to INSTRUMENT PANEL (I/P) EXTENSION TRIM PLATE REPLACEMENT .

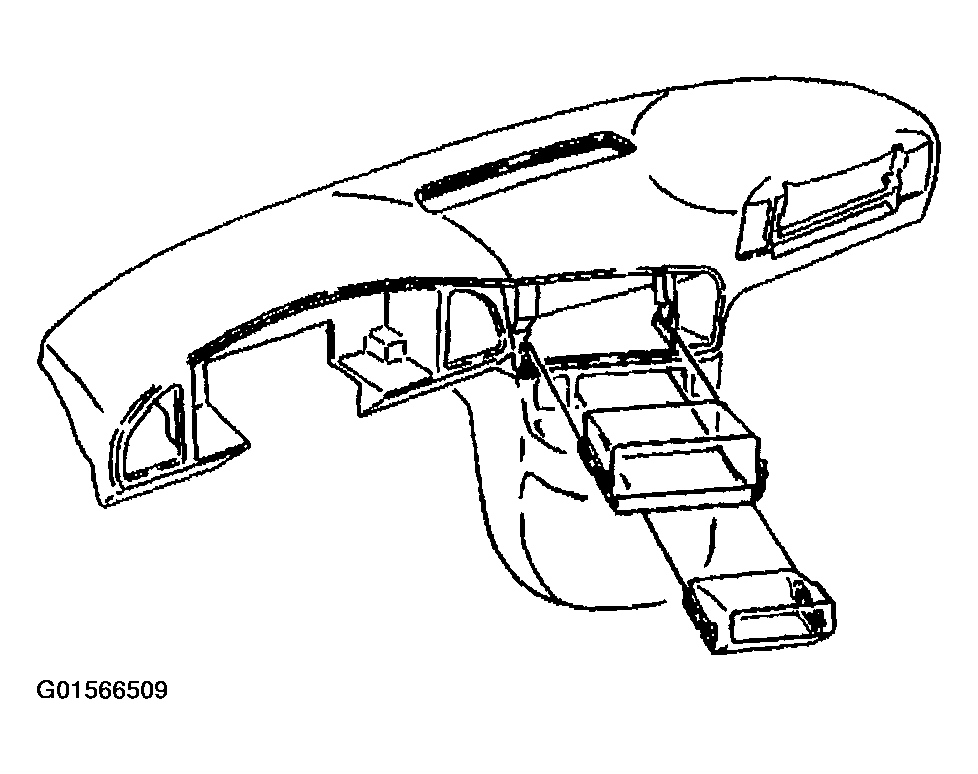

    Fig 1: Instrument Panel Extension Trim Plate
    G01566509Courtesy of GENERAL MOTORS CORP.
