Removal Procedure

  1. Remove the radiator grille from the vehicle. Refer to GRILLE REPLACEMENT in Exterior Trim.
  2. Remove the outside air temperature sensor from the center support bracket by sliding the sensor upward.
  3. Disconnect the temperature sensor electrical connector.

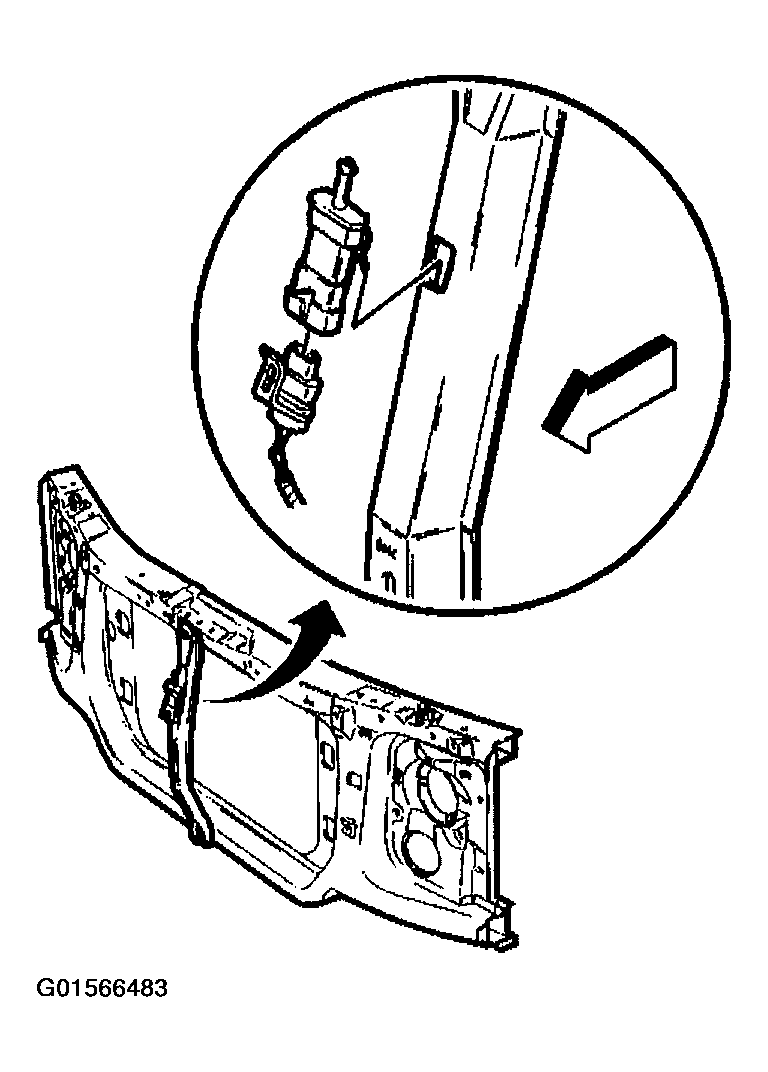

    Fig 1: Disconnecting Temperature Sensor Electrical Connector
    G01566483Courtesy of GENERAL MOTORS CORP.
