Installation Procedure

  1. Connect the temperature sensor electrical connector.

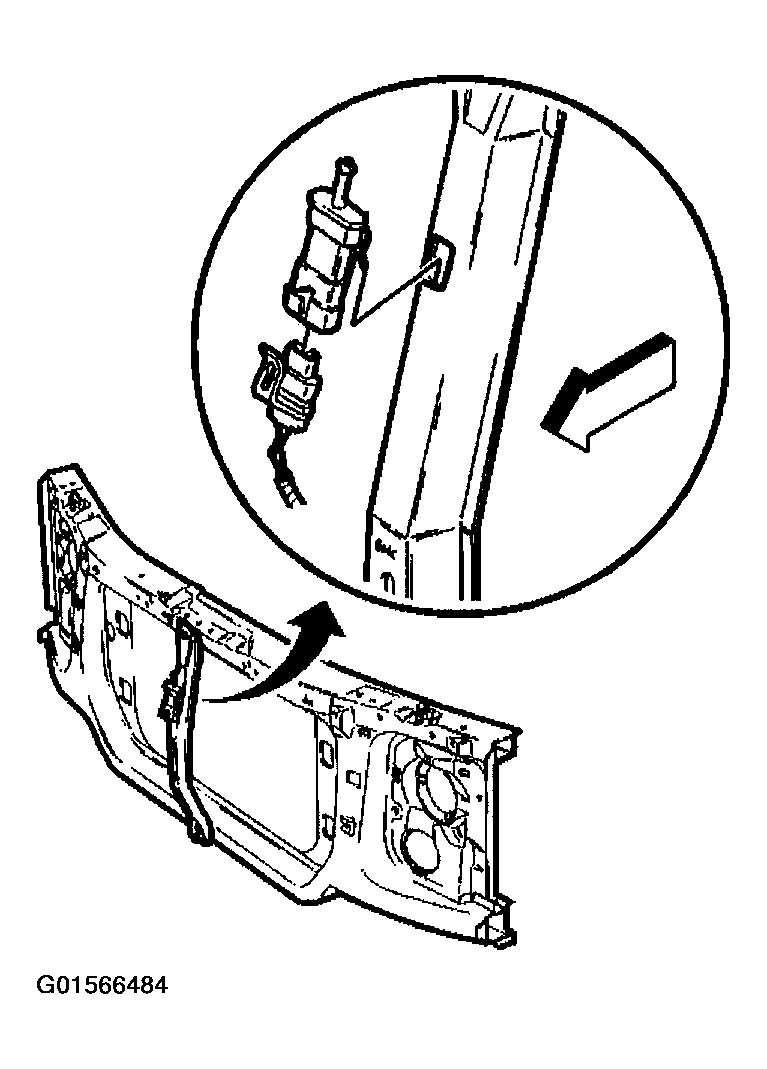

    Fig 1: Connecting Temperature Sensor Electrical Connector
    G01566484Courtesy of GENERAL MOTORS CORP.
  2. Install the temperature sensor by sliding the sensor downward.
  3. Install the radiator grille to the vehicle. Refer to GRILLE REPLACEMENT in Exterior Trim.
