Removal Procedure

  1. Remove the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Disconnect the electrical connectors.
  3. Squeeze the lock tabs in order to remove the switches.

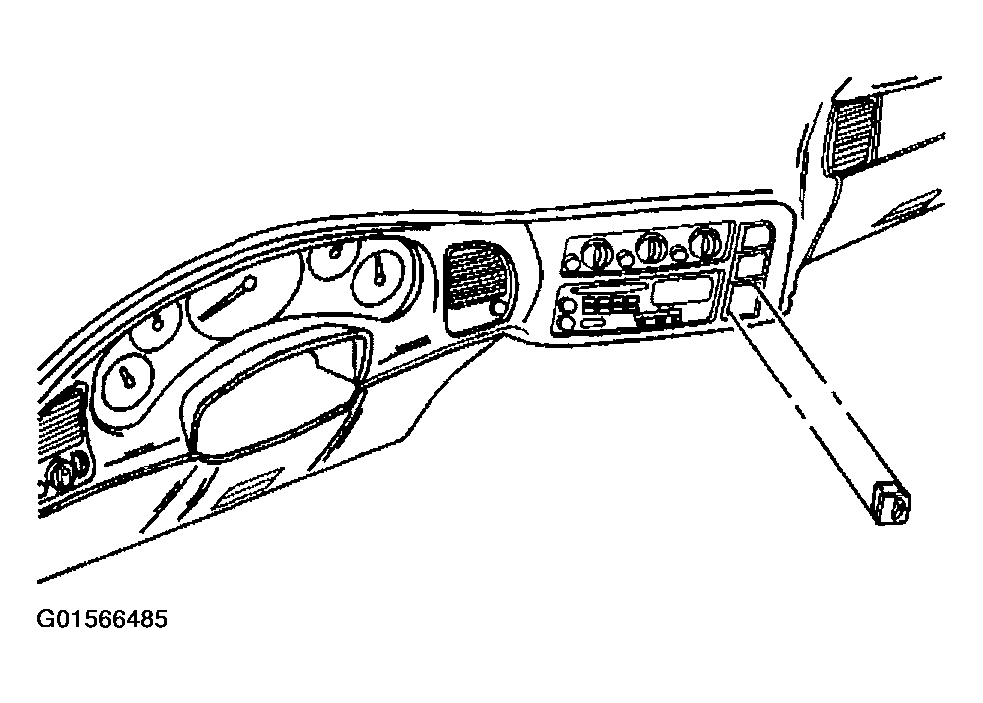

    Fig 1: Disconnecting Electrical Connector
    G01566485Courtesy of GENERAL MOTORS CORP.
