Installation Procedure

  1. Push in on the switches in order to install the switches to the plate.

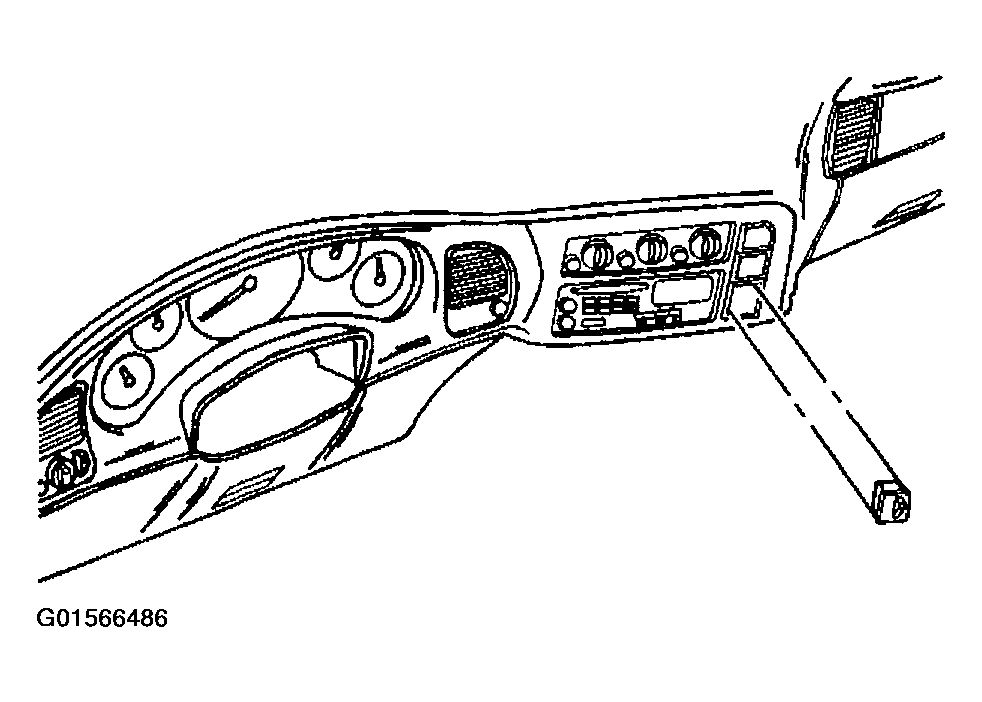

    Fig 1: Connecting Electrical Connector
    G01566486Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
  3. Install the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
