Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel, Gages, And Console >> Diagnostic Information and Procedures >> Driver Information Center (DIC) Switch(es) Inoperative

Driver Information Center (DIC) Switch(es) Inoperative

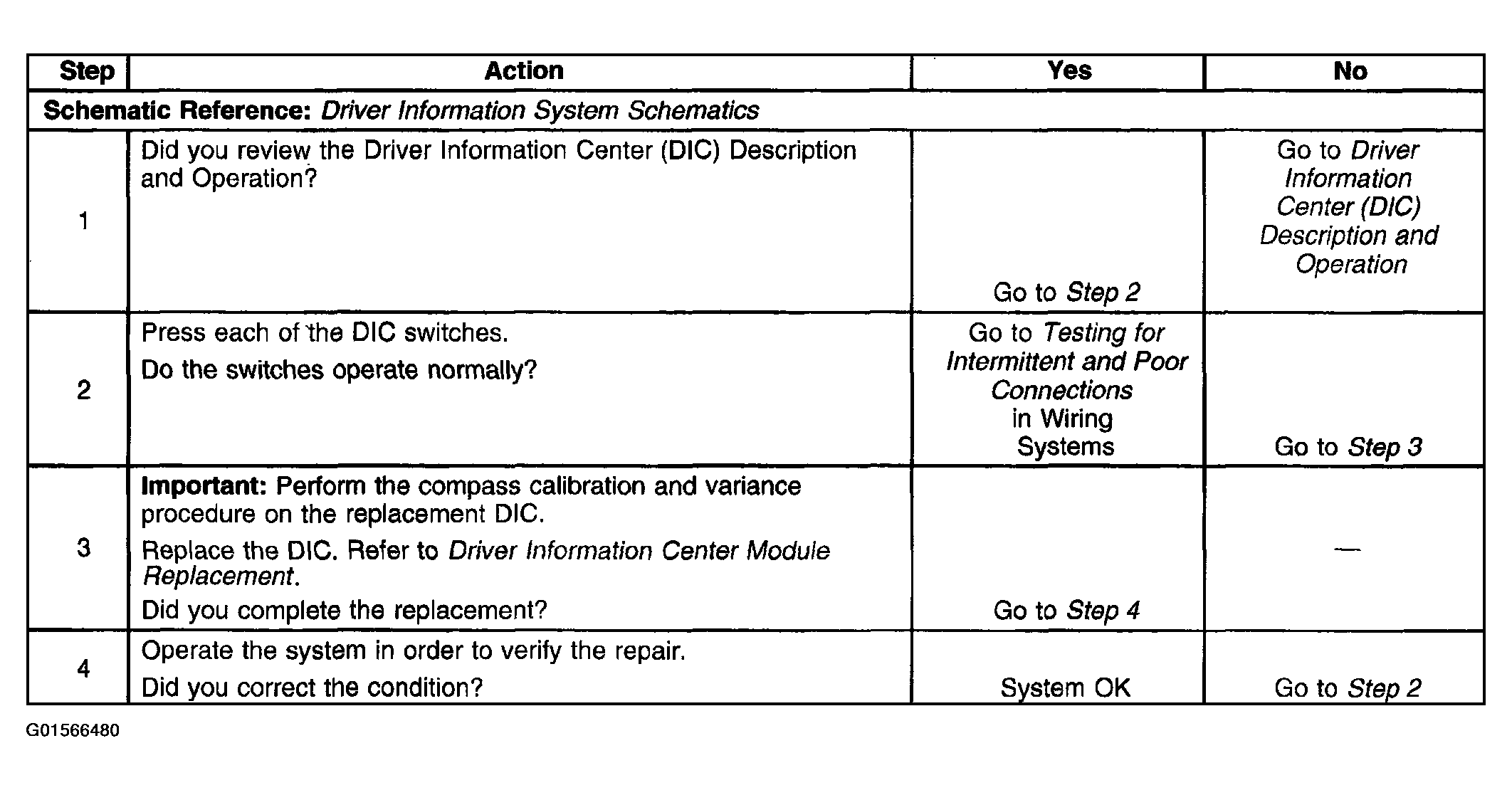

Fig 1: Driver Information Center (DIC) Switch(es) Inoperative

G01566480

Courtesy of GENERAL MOTORS CORP.
