Test Description

The number below refers to the step number on the diagnostic table.

Tests for the proper operation of the circuit in the low voltage range.

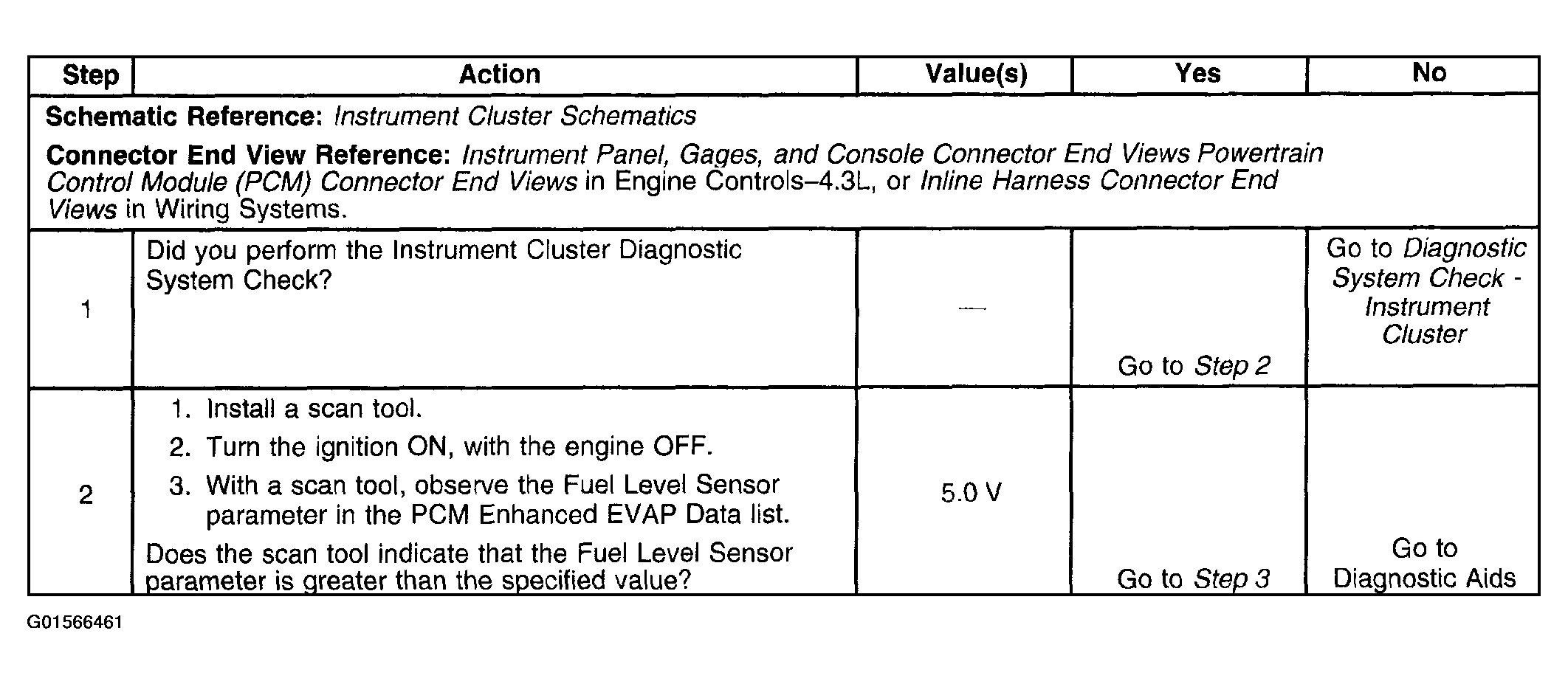

Fig 1: DTC P0463 (1 Of 2)
G01566461Courtesy of GENERAL MOTORS CORP.

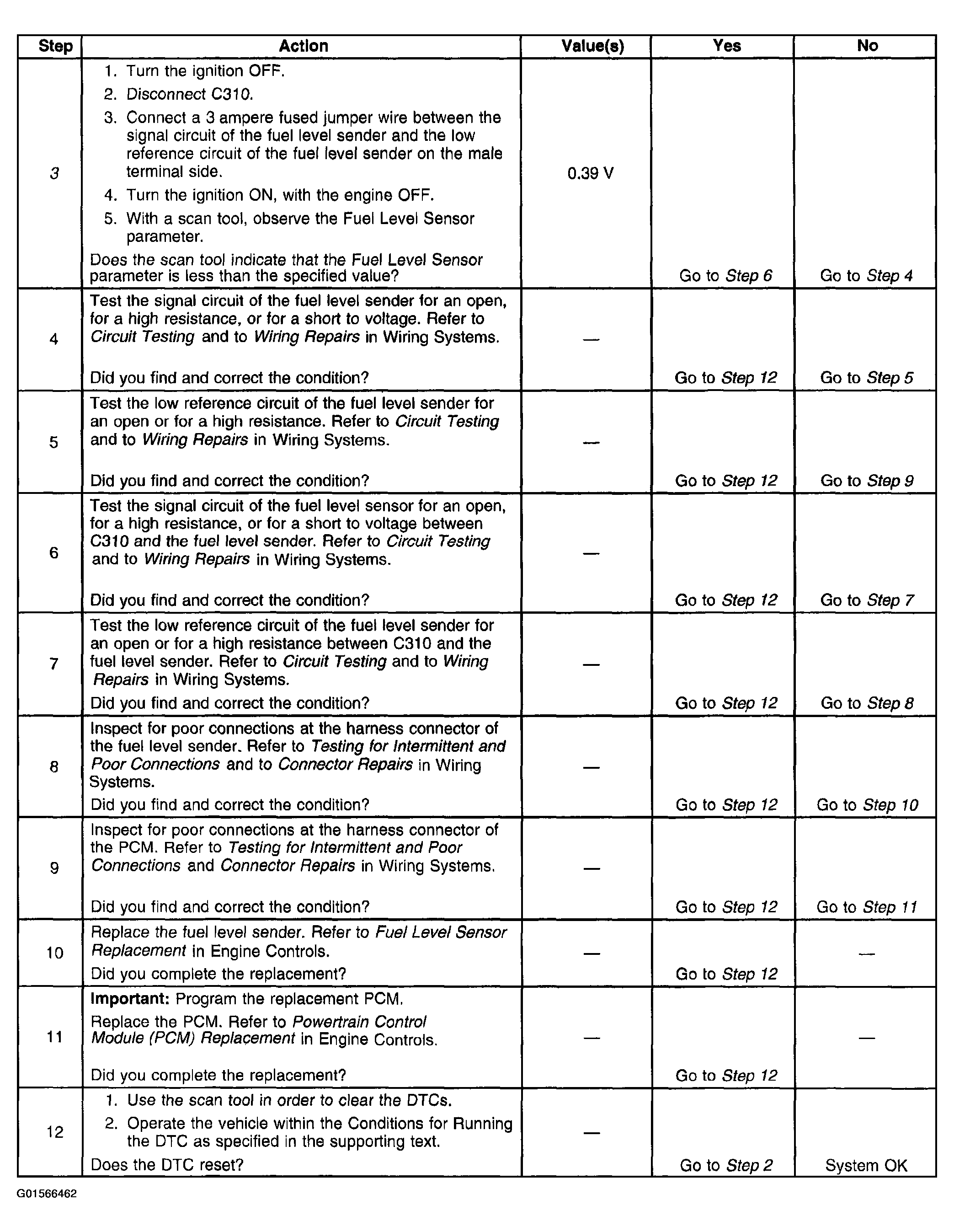

Fig 2: DTC P0463 (2 Of 2)
G01566462Courtesy of GENERAL MOTORS CORP.
