Indicator/Warning Message Description and Operation: Notes

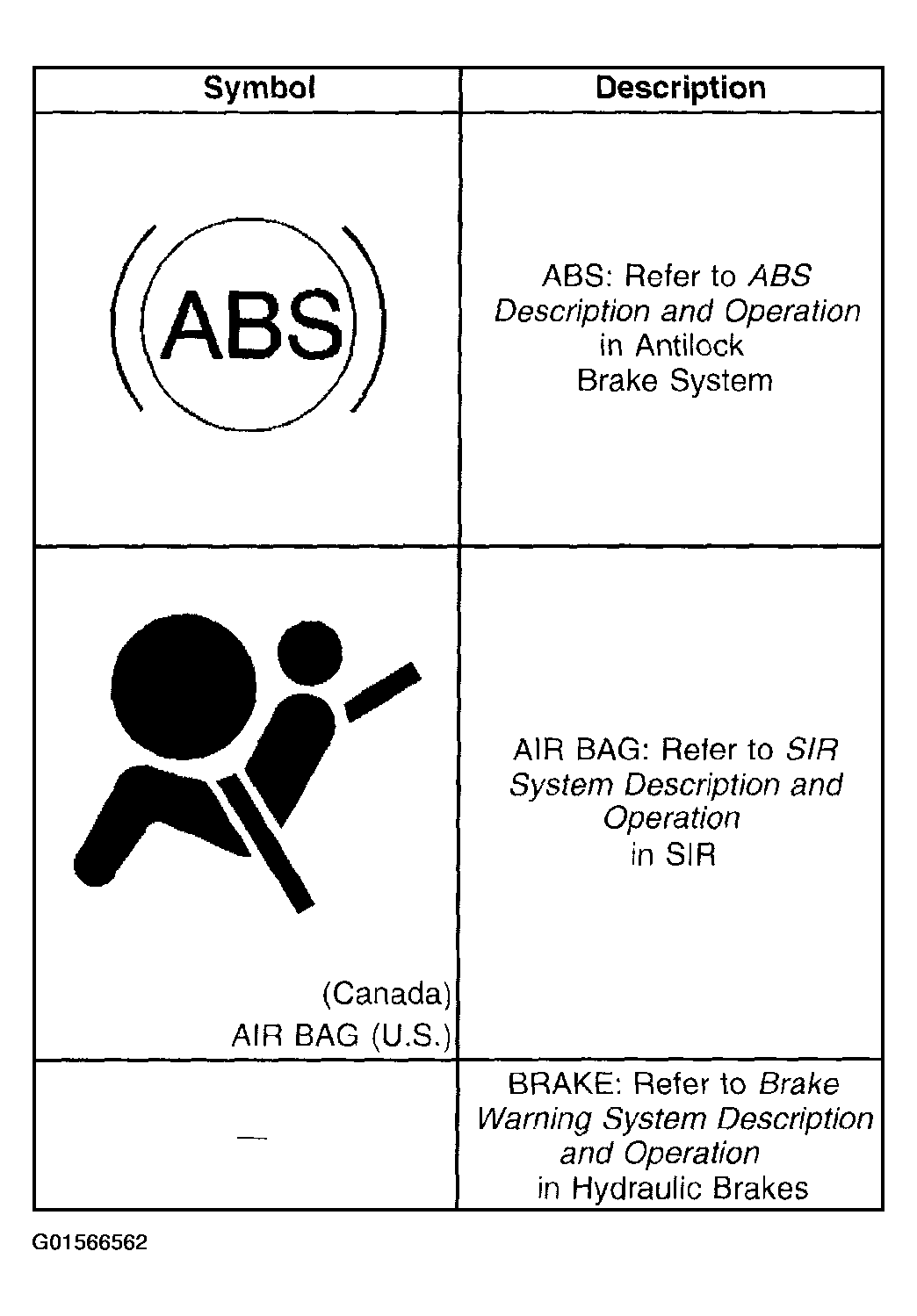

Fig 1: Indicator/Warning Message Description & Operation (1 Of 3)
G01566562Courtesy of GENERAL MOTORS CORP.

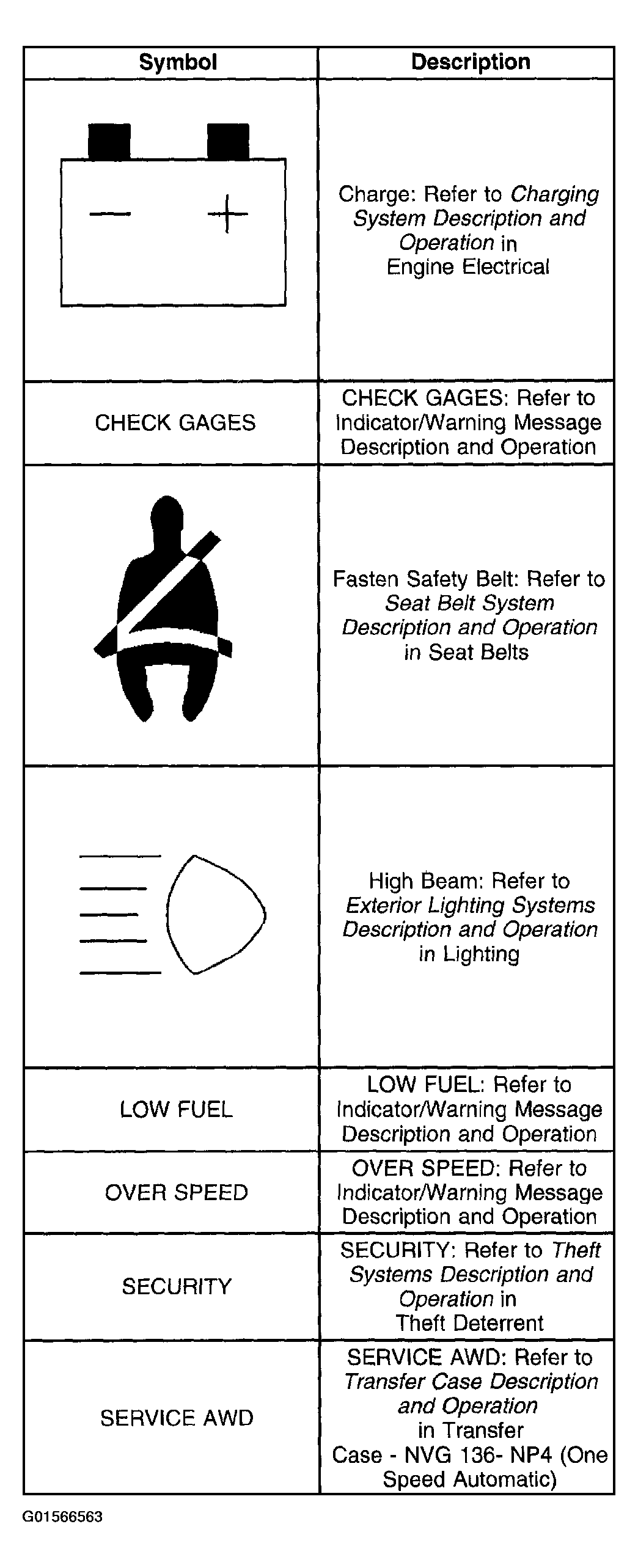

Fig 2: Indicator/Warning Message Description & Operation (2 Of 3)
G01566563Courtesy of GENERAL MOTORS CORP.

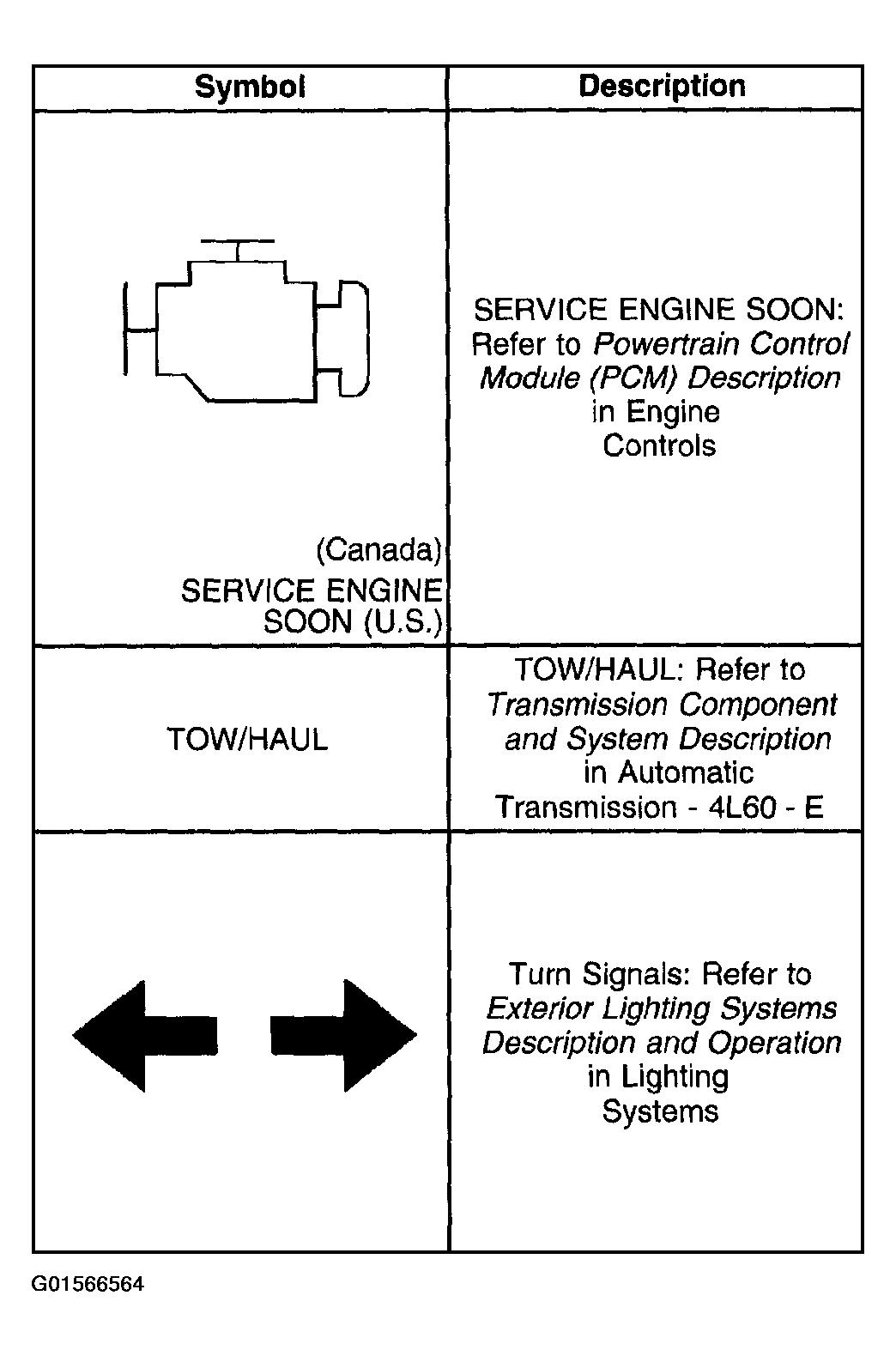

Fig 3: Indicator/Warning Message Description & Operation (3 Of 3)
G01566564Courtesy of GENERAL MOTORS CORP.
