Instrument Panel, Gages, and Console Connector End Views

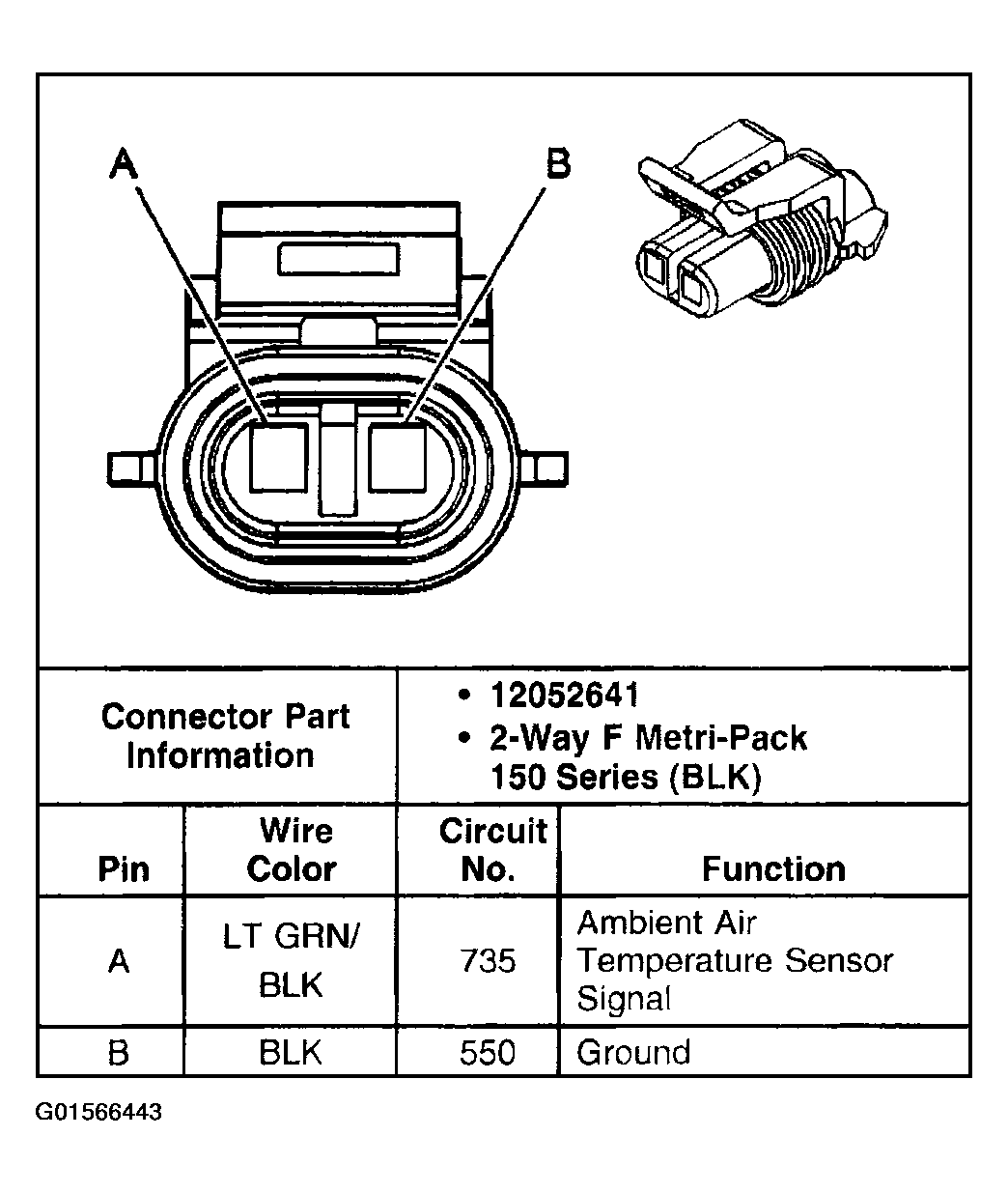

Fig 1: Ambient Air Temperature Sensor (DIC)

Courtesy of GENERAL MOTORS CORP.

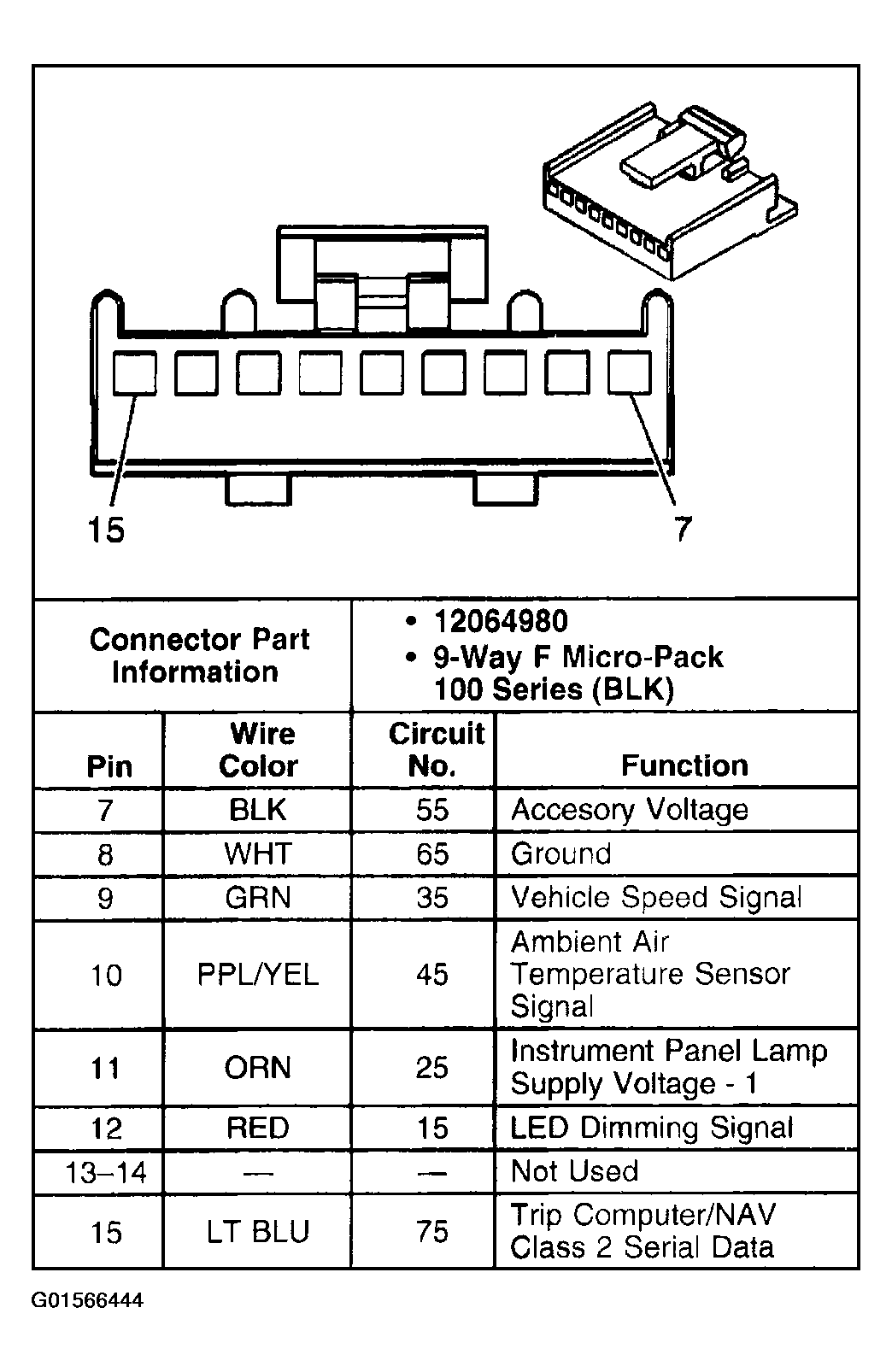

Fig 2: Driver Information Center (DIC)

Courtesy of GENERAL MOTORS CORP.

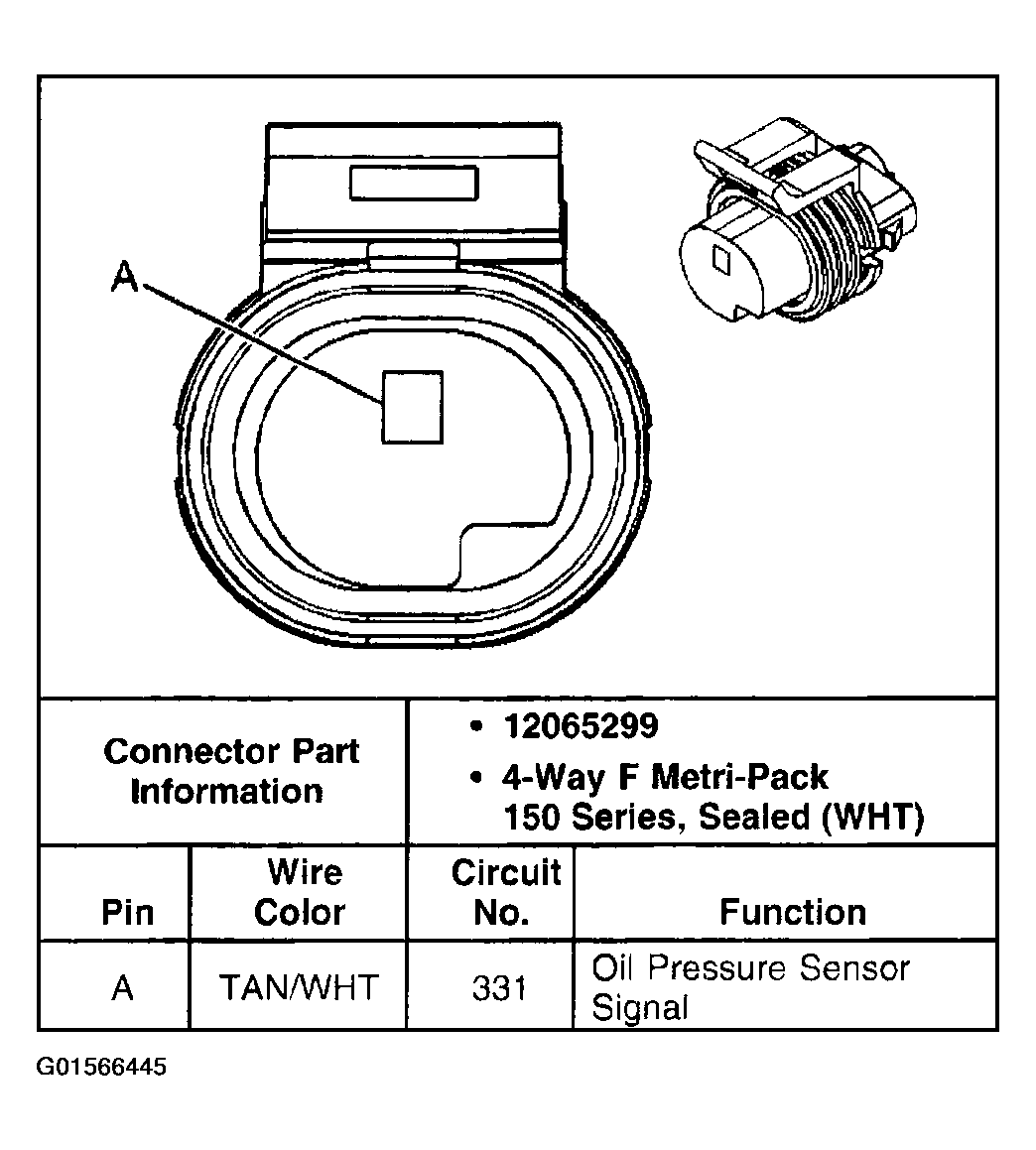

Fig 3: Engine Oil Pressure (EOP) Sensor

Courtesy of GENERAL MOTORS CORP.

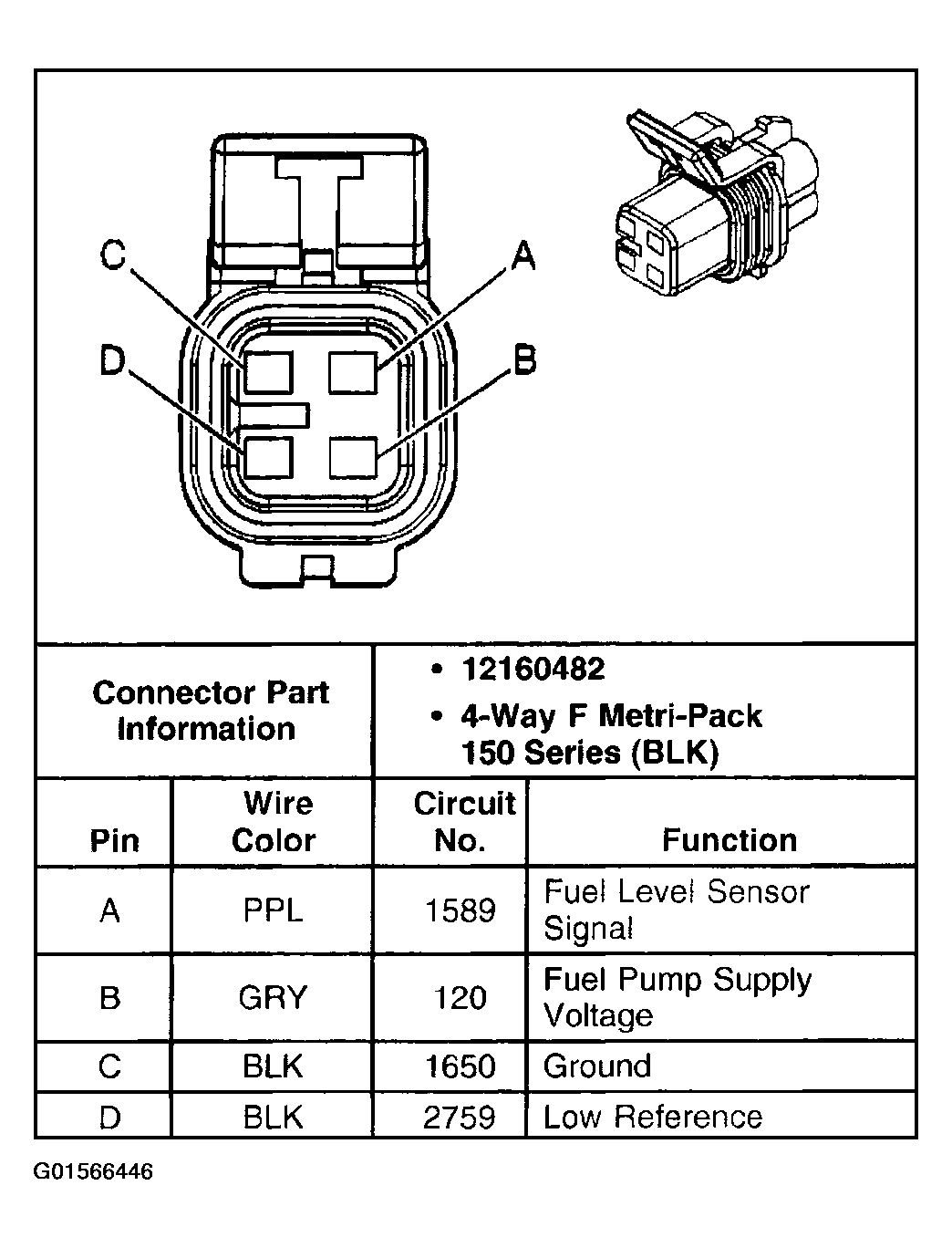

Fig 4: Fuel Pump & Sender Assembly

Courtesy of GENERAL MOTORS CORP.

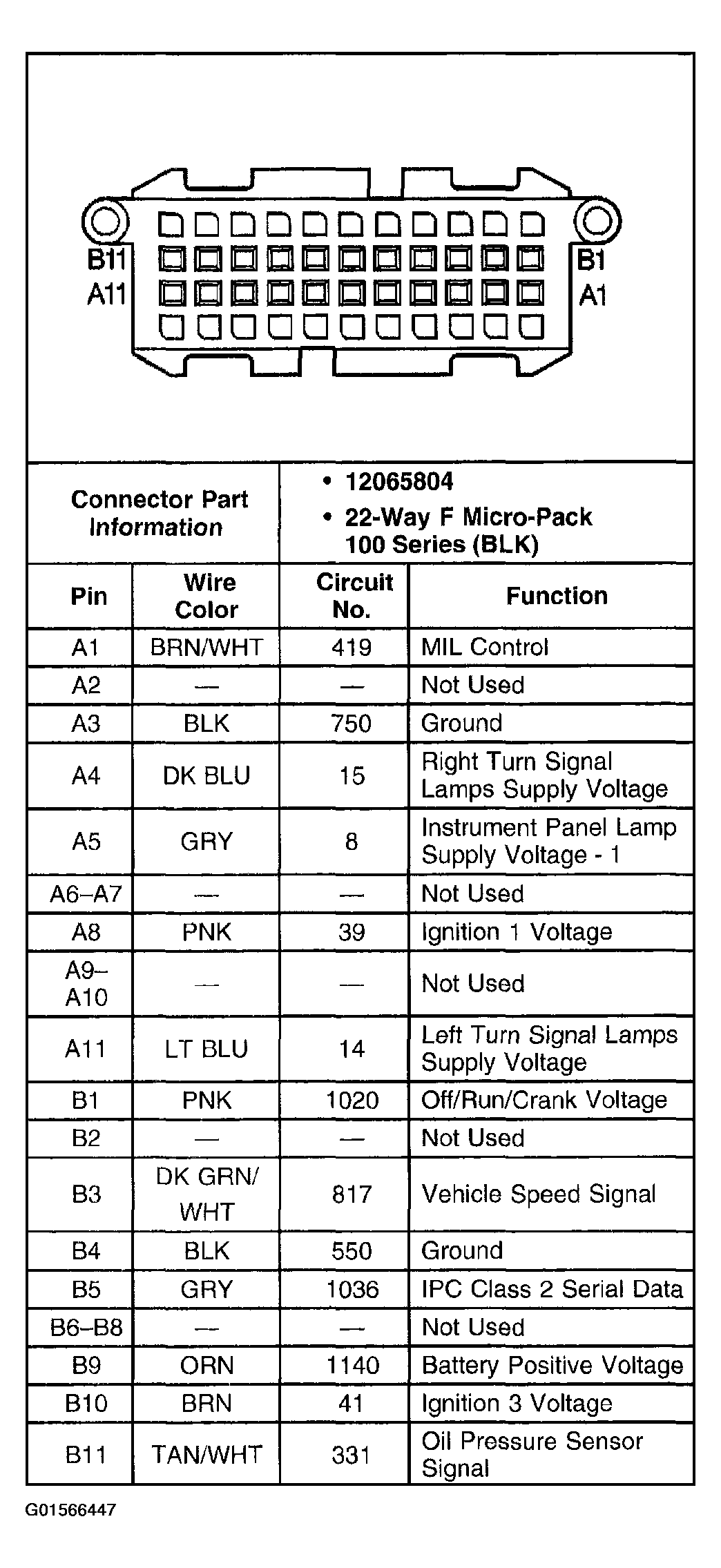

Fig 5: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.
