Instrument Panel, Gages, and Console Component Views

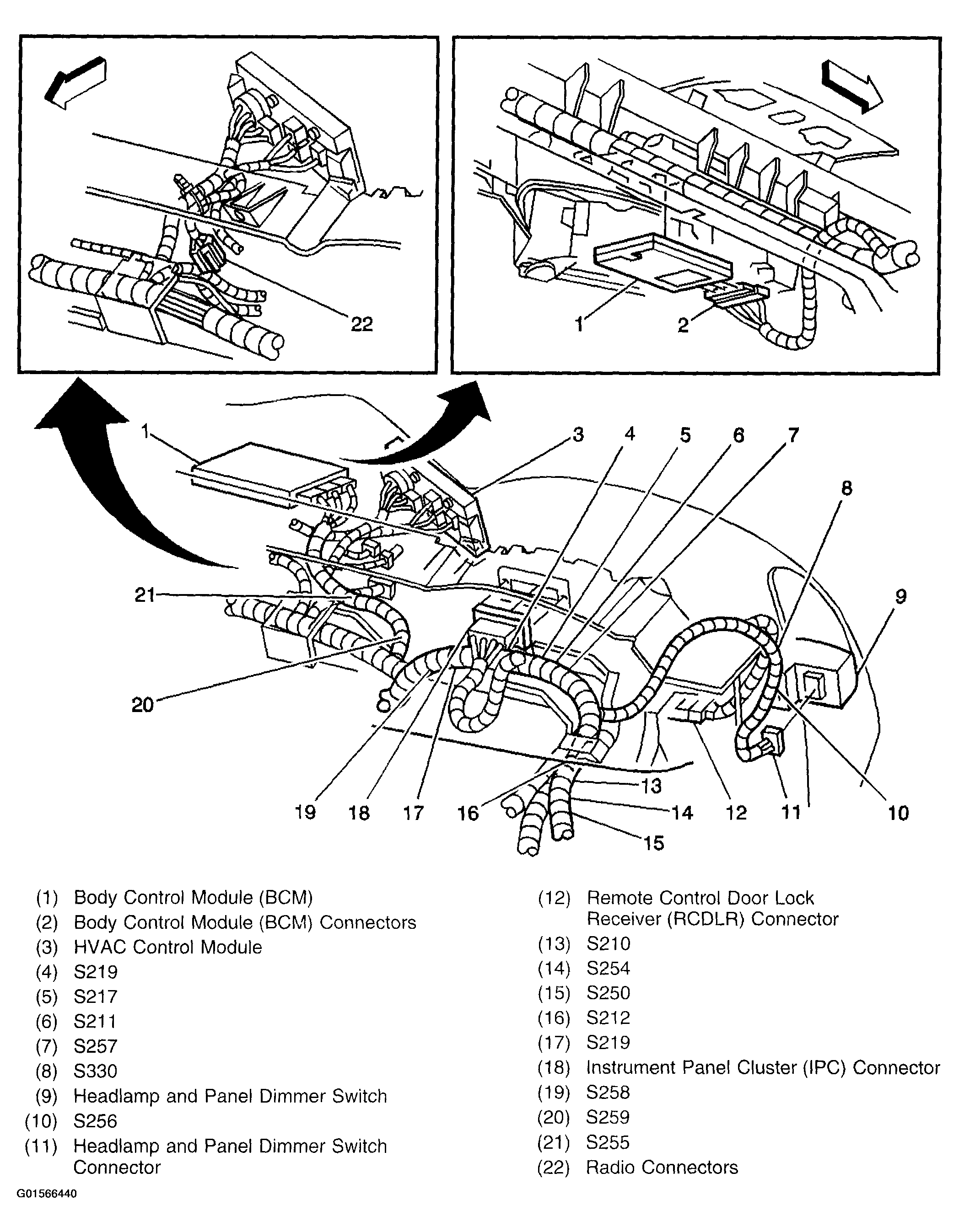

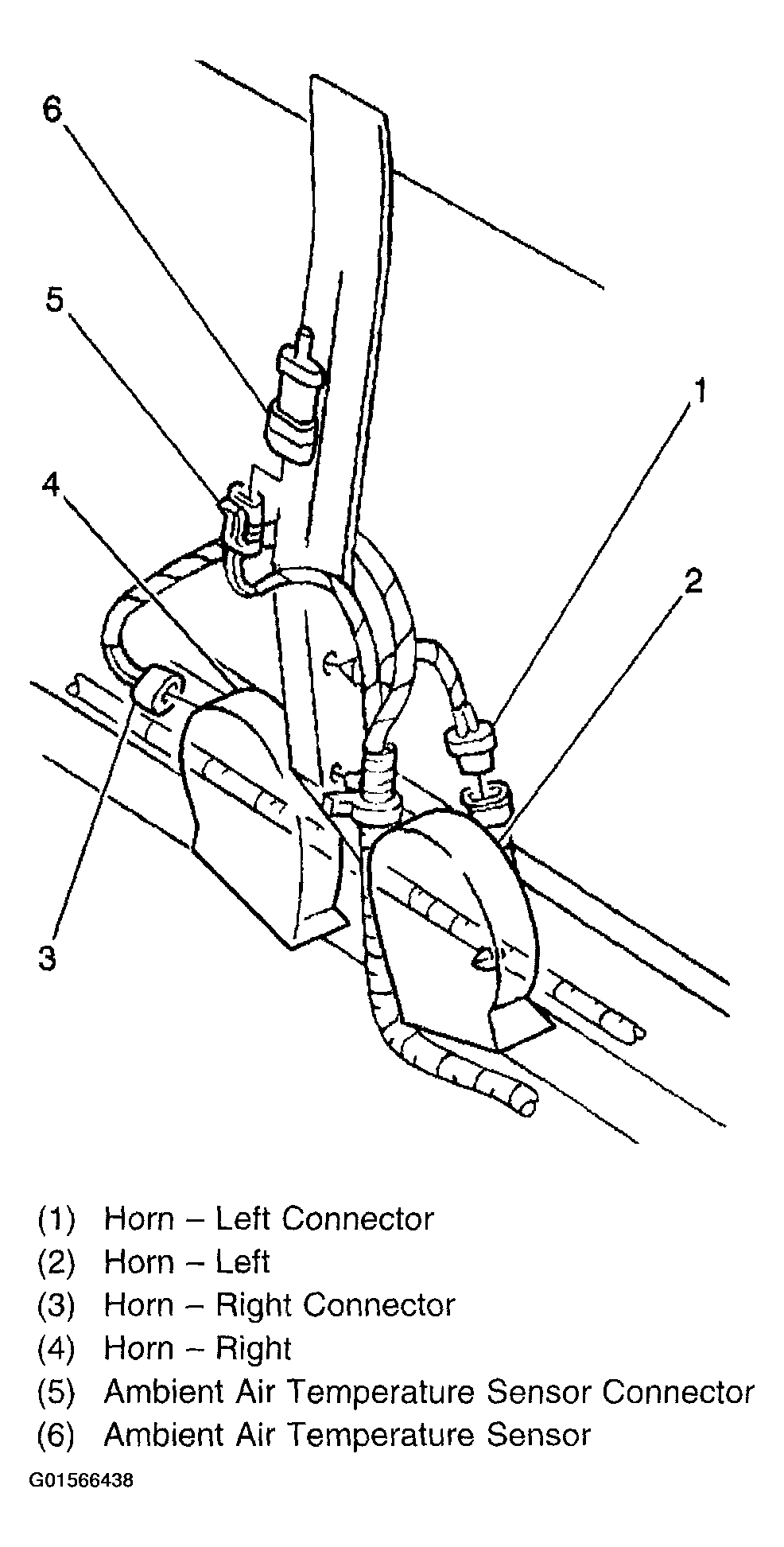

Fig 1: Front End Center Wiring

Courtesy of GENERAL MOTORS CORP.

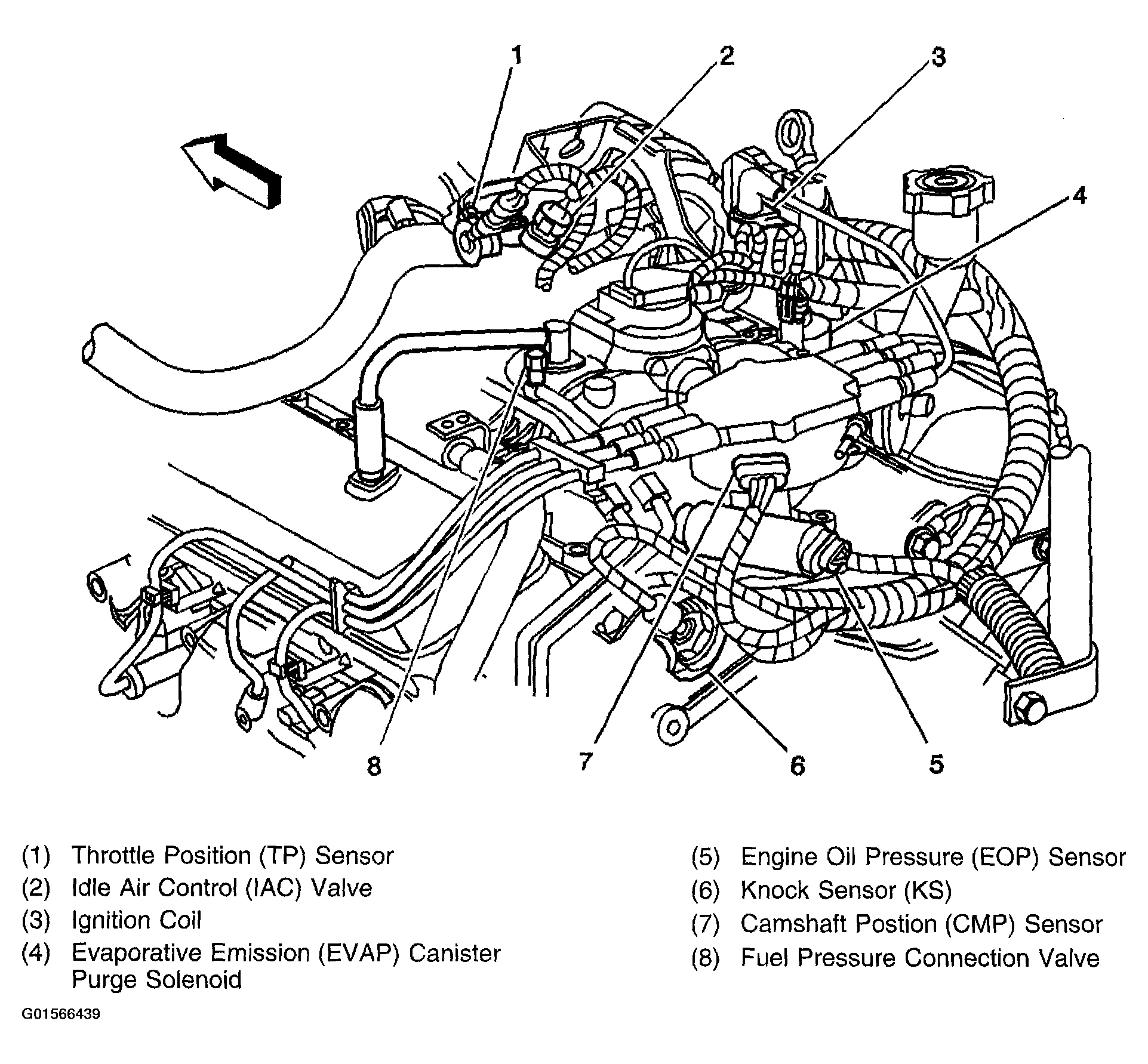

Fig 2: Throttle Position (TP) Sensor, Idle Air Control (IAC) Valve & Camshaft Position (CMP) Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 3: Instrument Cluster Wiring

Courtesy of GENERAL MOTORS CORP.

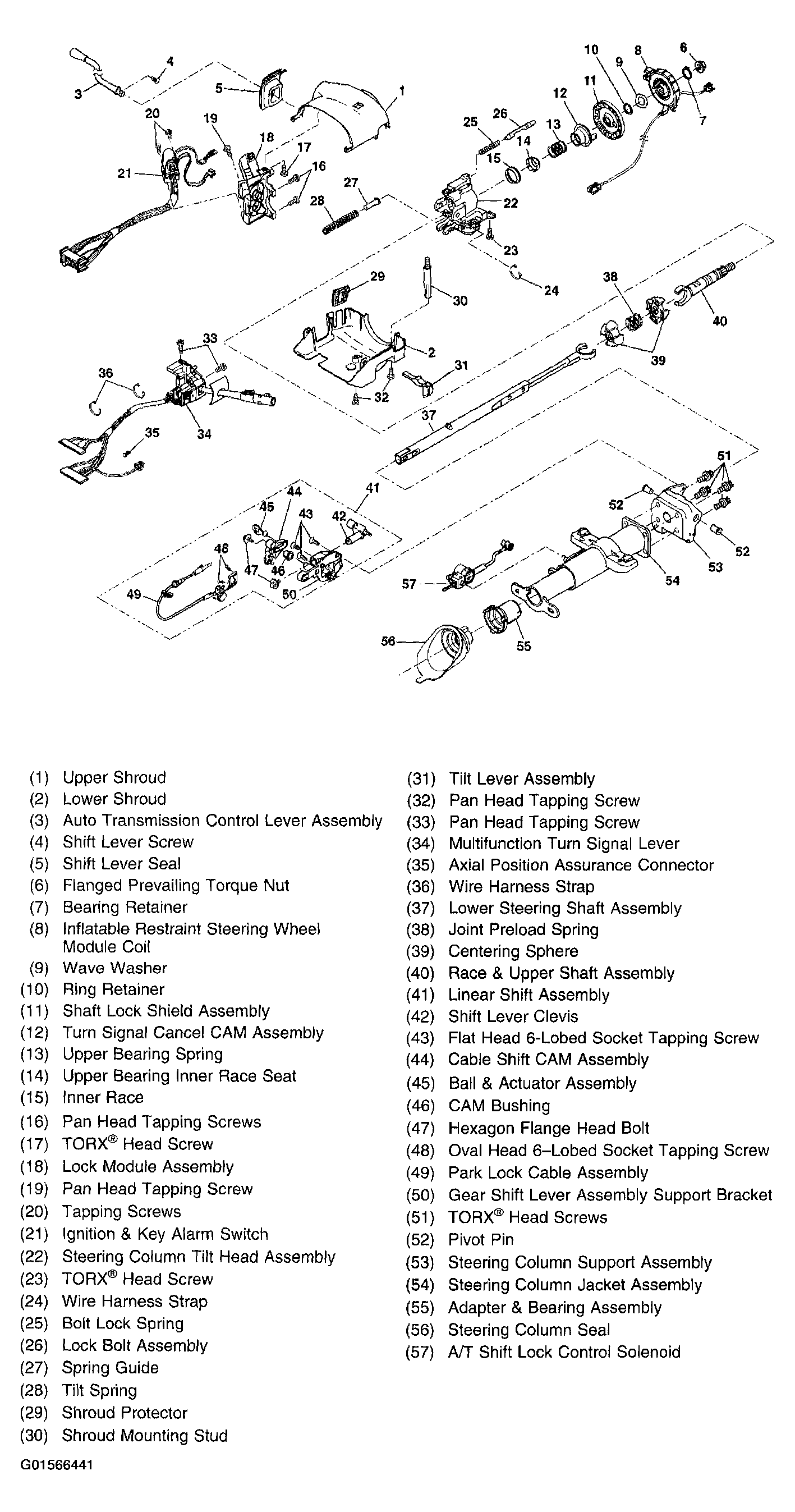

Fig 4: Exploded View Of Tilt Column Shift Steering Column

Courtesy of GENERAL MOTORS CORP.

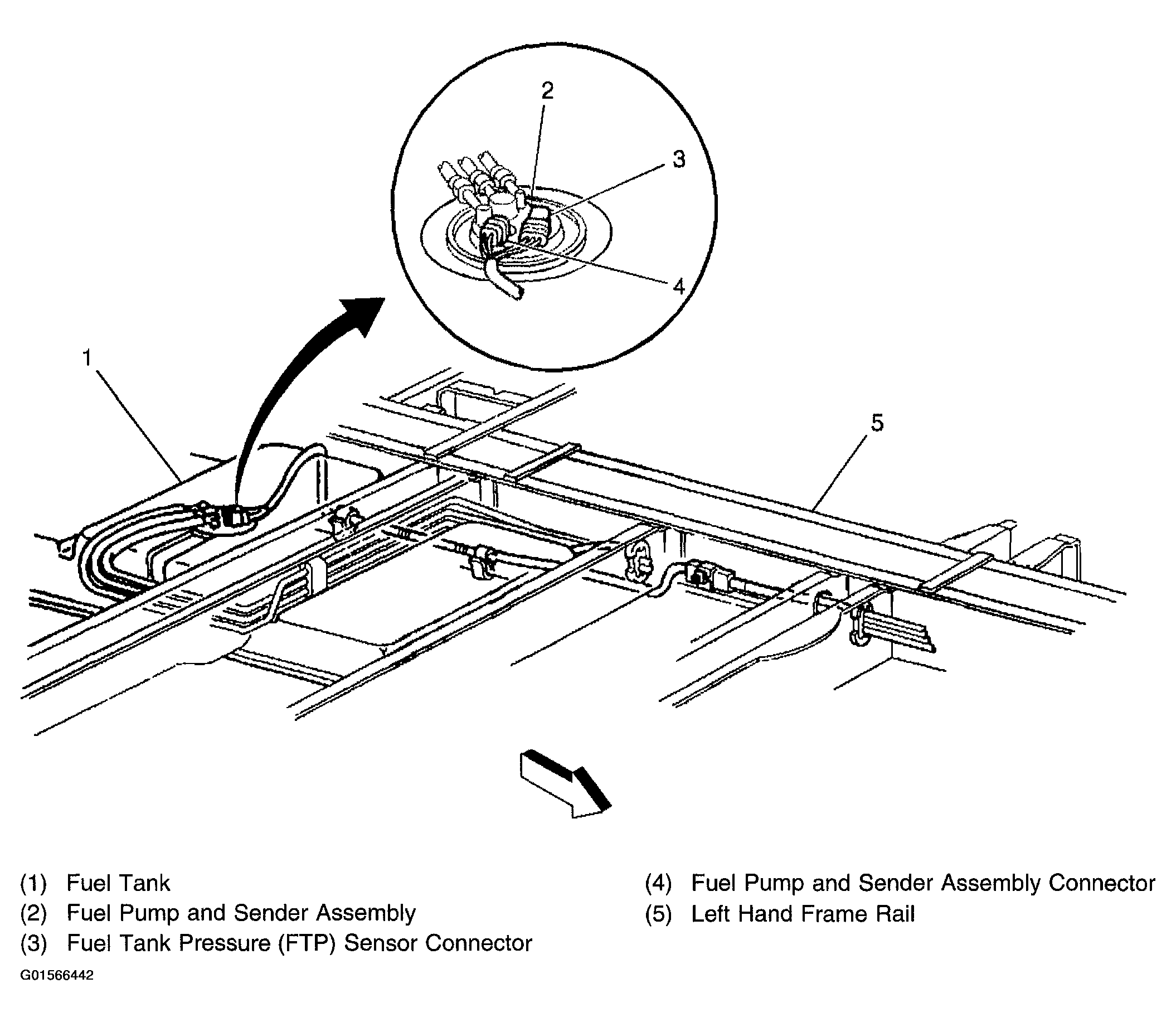

Fig 5: Fuel Tank, Fuel Tank Pressure (FTP) Sensor & Fuel Sender

Courtesy of GENERAL MOTORS CORP.
