Shudder on Acceleration at Low Speed

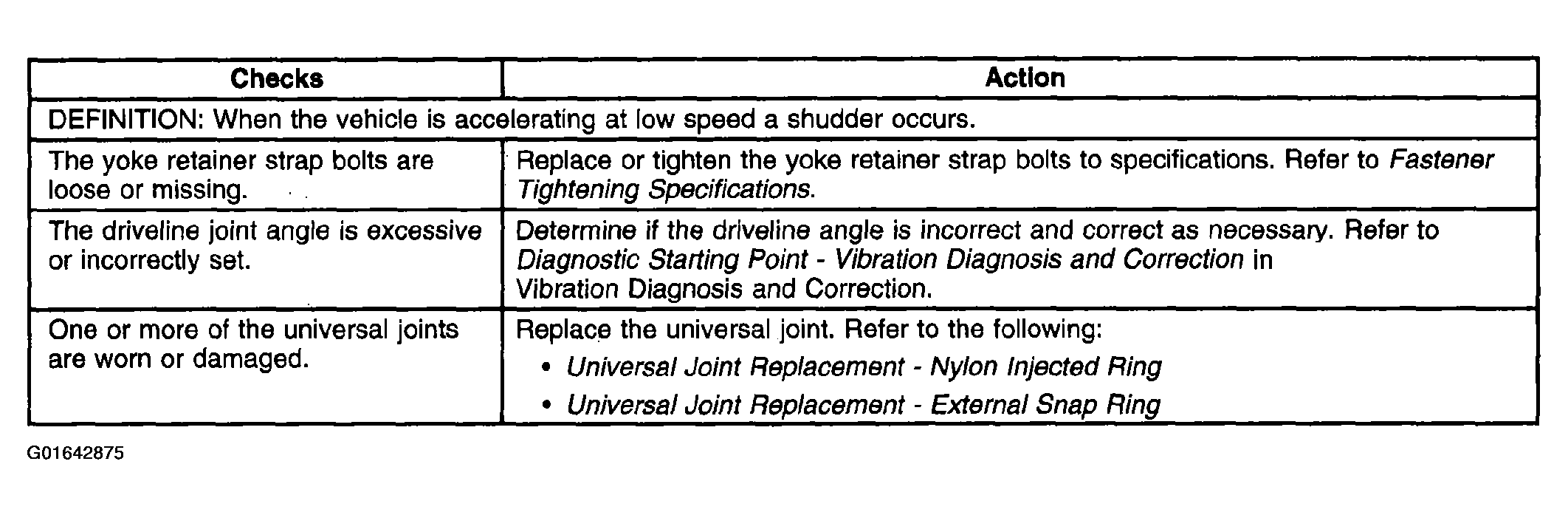

Fig 1: Shudder On Acceleration At Low Speed

G01642875

Courtesy of GENERAL MOTORS CORP.
