Installation Procedure

  1. Install the differential side bearings by doing the following:
    1. 1.1. In order to protect the differential case, install the J 8107-2  (2) in the case on the side opposite the bearing installation.
    2. 1.2. Install the J 25299  (2) and the J 8092  91) onto the differential case bearing as shown.
    3. 1.3. Drive the bearing onto the case using the J 25299  (2) and the J 8092  (1).

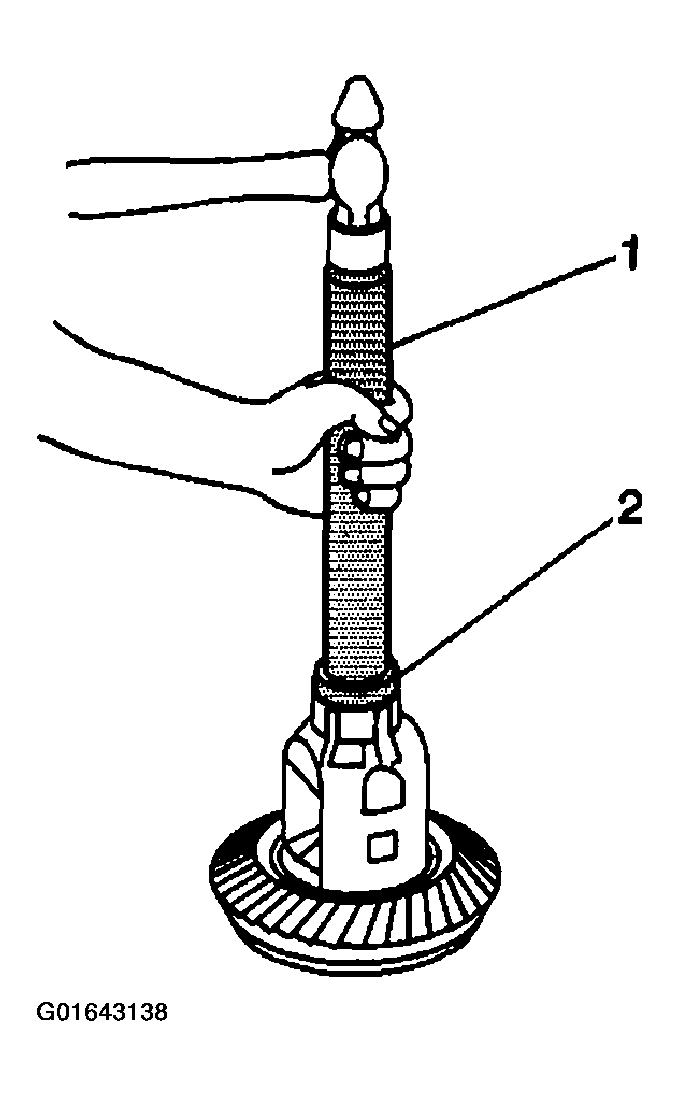

    Fig 1: Installing J 25299 & J 8092 Onto Differential Case Bearing
    G01643138Courtesy of GENERAL MOTORS CORP.
  2. Install the differential assembly Refer to DIFFERENTIAL REPLACEMENT .
