Wheel Bearing Wear - Rear Drive Axle (Tapered): Indentations

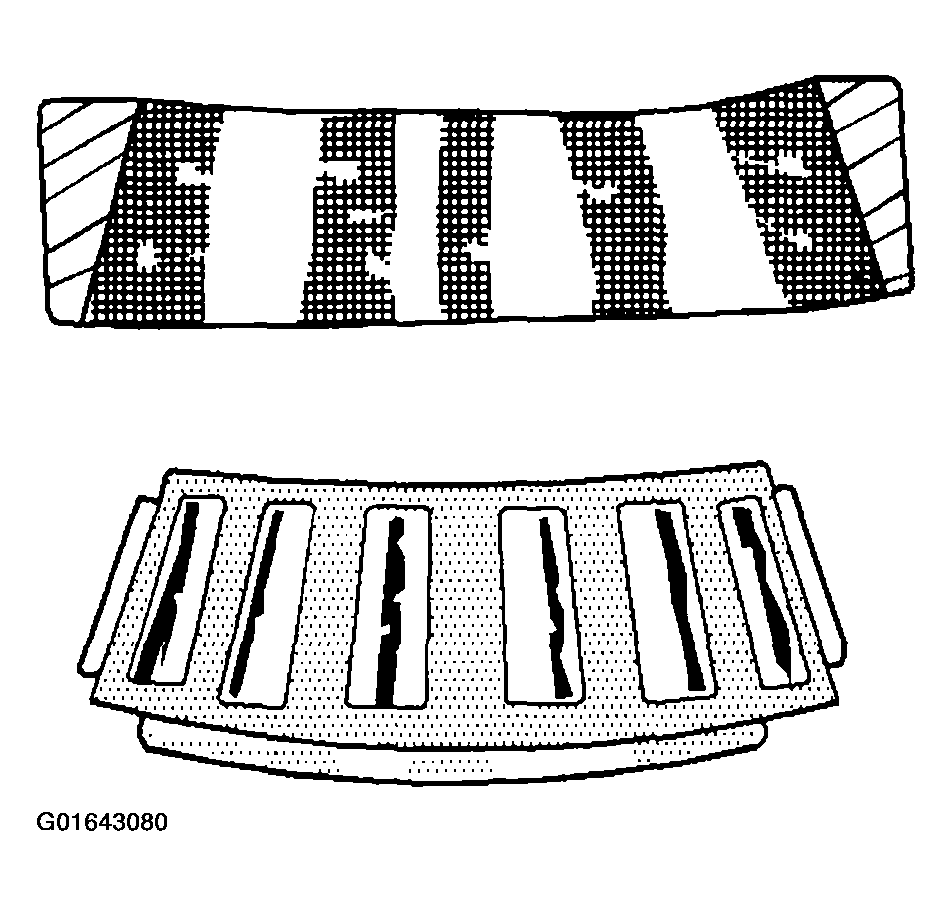

Fig 1: Indentations
G01643080Courtesy of GENERAL MOTORS CORP.

Surface depressions on the race and the rollers caused by hard particles of foreign matter. Clean all the parts and the housings. Check the seals. Replace rough or noisy bearings.
