Cage Wear

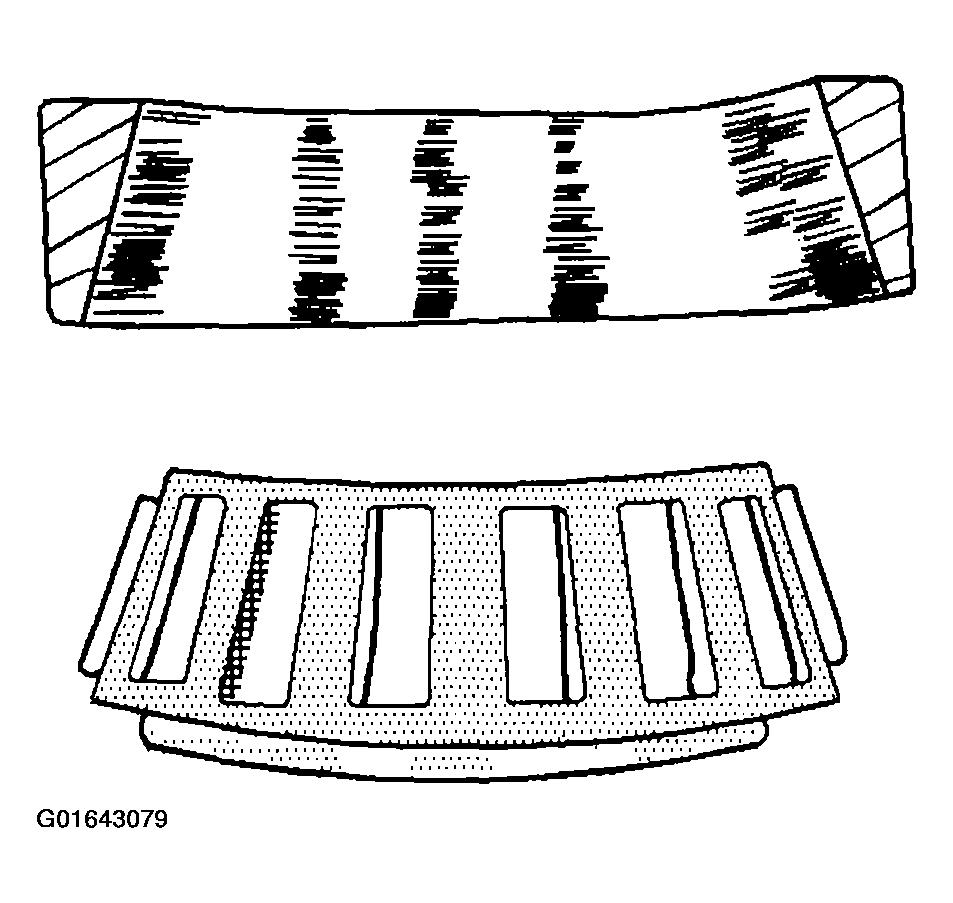

Fig 1: Cage Wear
G01643079Courtesy of GENERAL MOTORS CORP.

Wear around the outside diameter of the cage and the roller pockets caused by abrasive material. Wear caused from inefficient lubrication. Clean the elated parts and the housings. Check the seals. Replace the bearings.
