Wheel Bearing Wear - Rear Drive Axle (Tapered): Brinelling

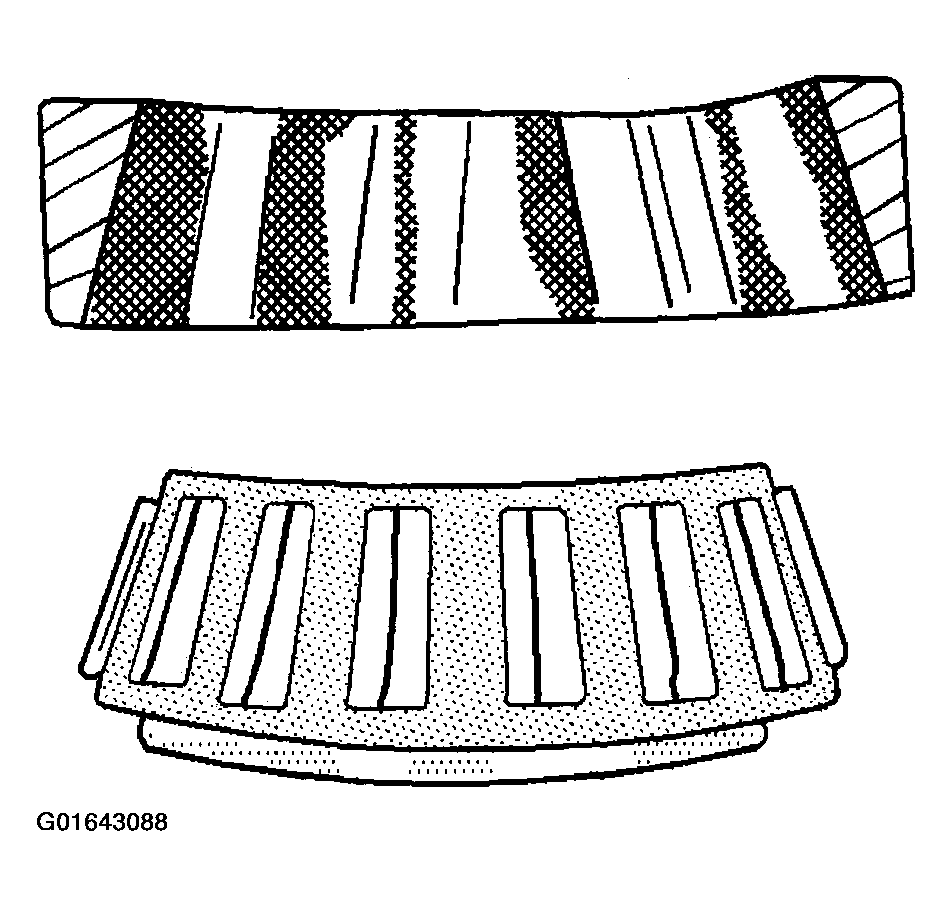

Fig 1: Brinelling
G01643088Courtesy of GENERAL MOTORS CORP.

Surface indentations in the race way caused by the rollers under impact loading or caused from vibration while the bearing is not rotating. Replace a rough or noisy bearing.
