Bent Cage

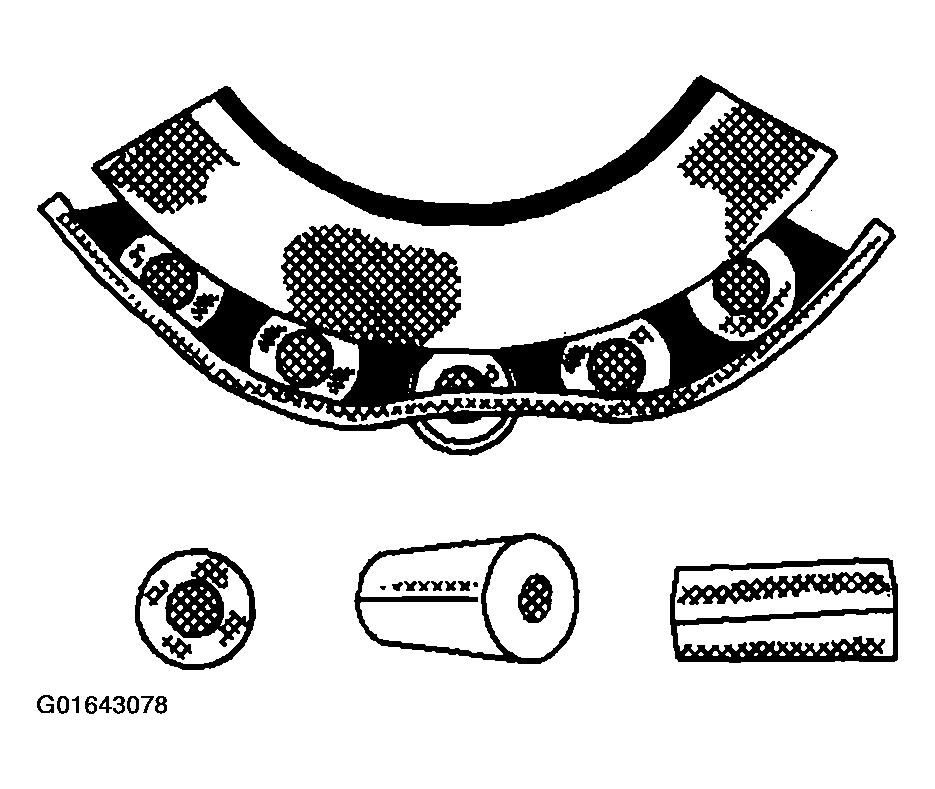

Fig 1: Bent Cage

G01643078

Courtesy of GENERAL MOTORS CORP.

A damaged cage due to improper handling or improper tool usage. Replace the bearing.
