Axle Preload and Backlash Specifications

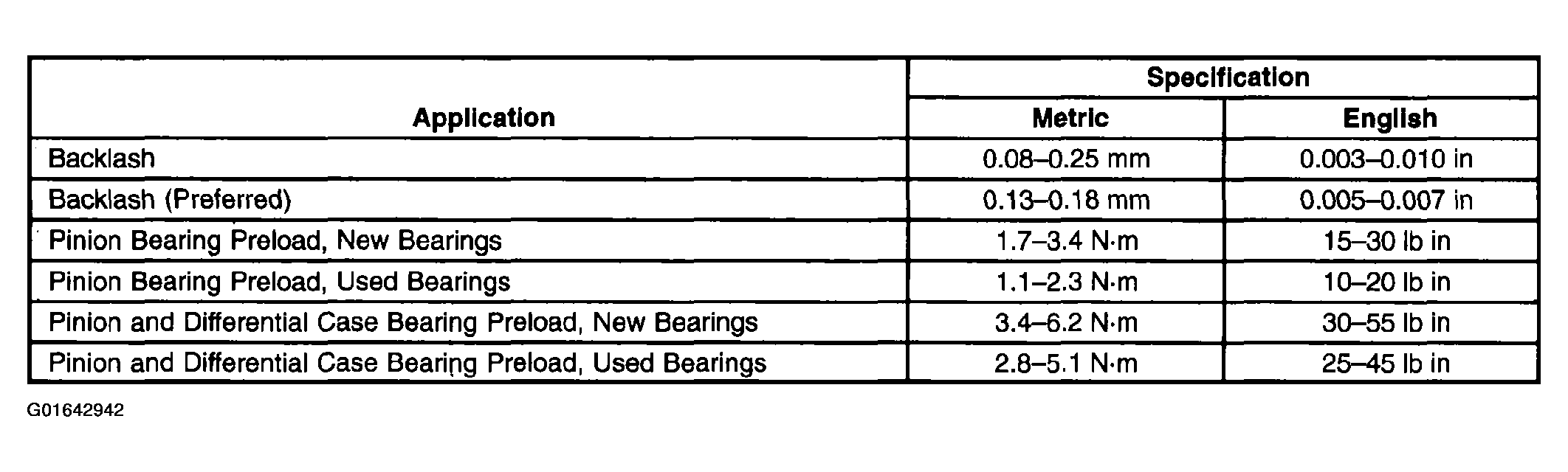

Fig 1: Axle Preload & Backlash Specifications

G01642942

Courtesy of GENERAL MOTORS CORP.
