Special Tools and Equipment
Special Tools and Equipment

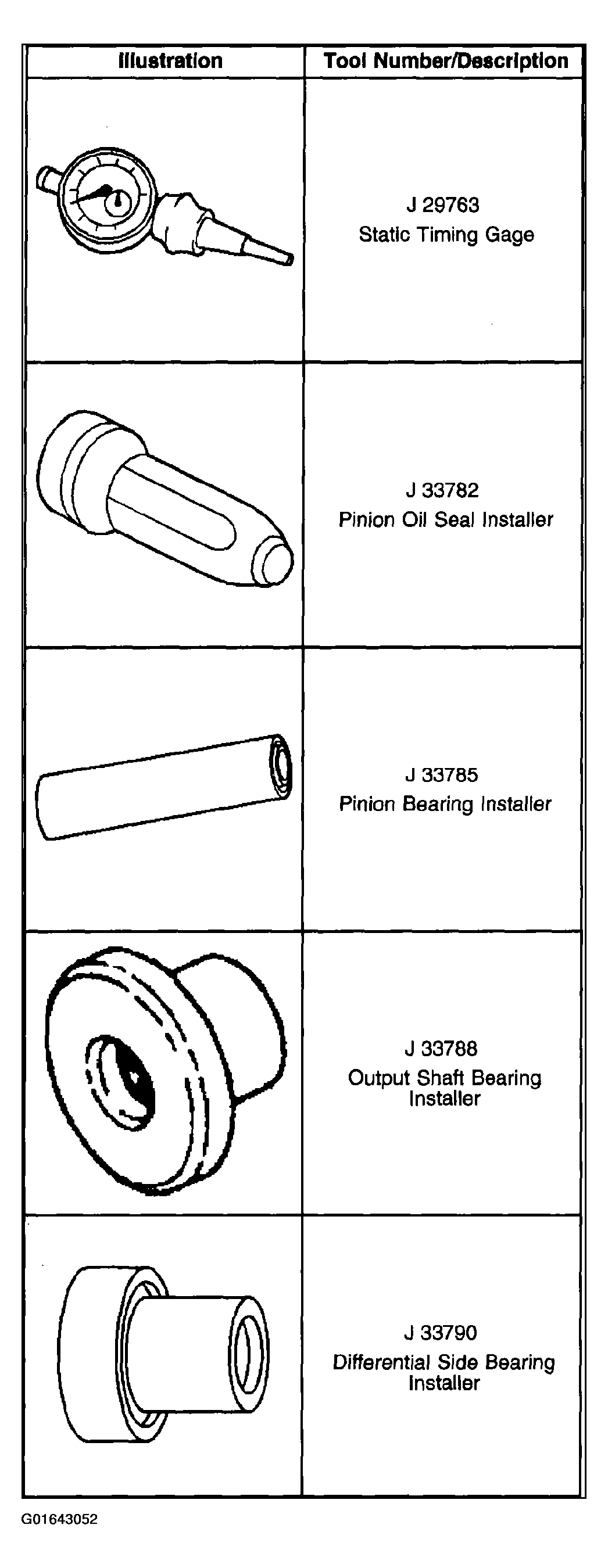

Fig 1: Special Tools & Equipment (1 Of 6)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Special Tools & Equipment (2 Of 6)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Special Tools & Equipment (3 Of 6)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Special Tools & Equipment (4 Of 6)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Special Tools & Equipment (5 Of 6)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Special Tools & Equipment (6 Of 6)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
