Remove Procedure

  1. Remove the vent hose from the frame.

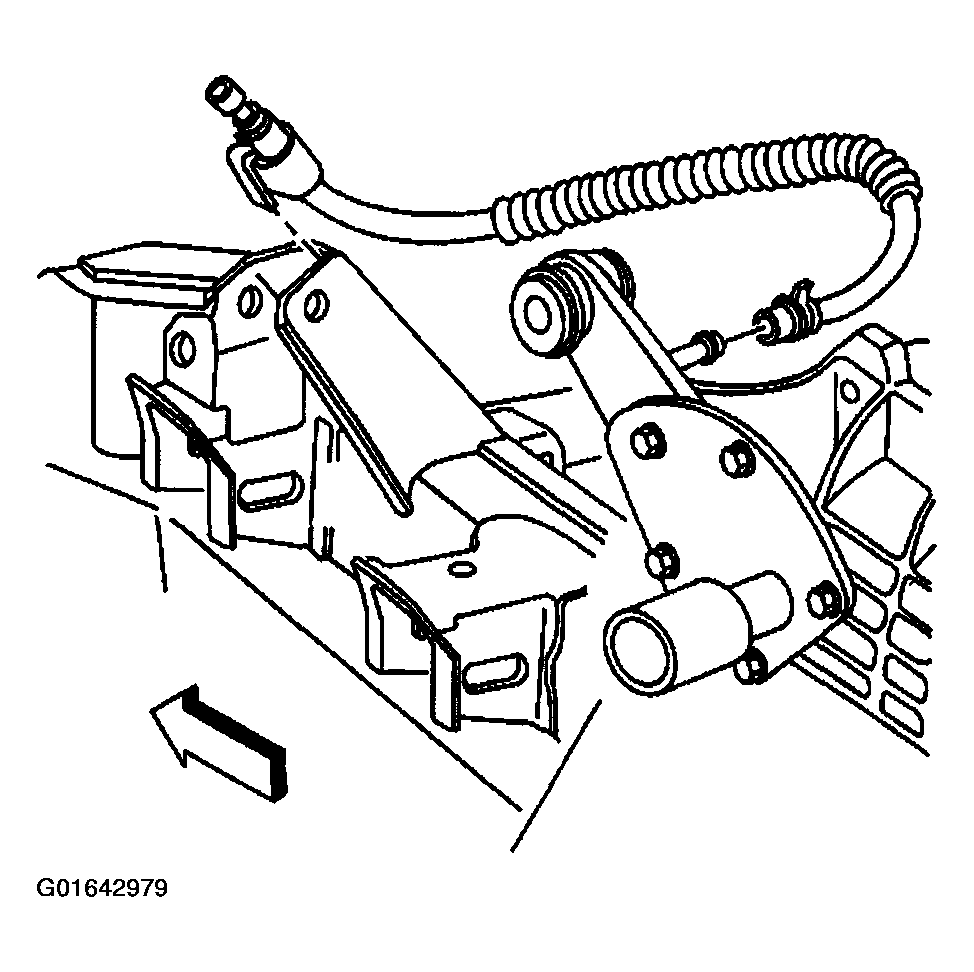

    Fig 1: Removing Vent Hose From Frame
    G01642979Courtesy of GENERAL MOTORS CORP.
  2. Remove the vent hose from the front axle.
