Installation Procedure

When replacing the hose, do the following:

• Rout the hose the same way as the original
• Make sure the hose is free of kinks.
• Route the hose away from sharp objects

1. Install the vent hose to the front axle.
2. Install the vent hose to the frame.

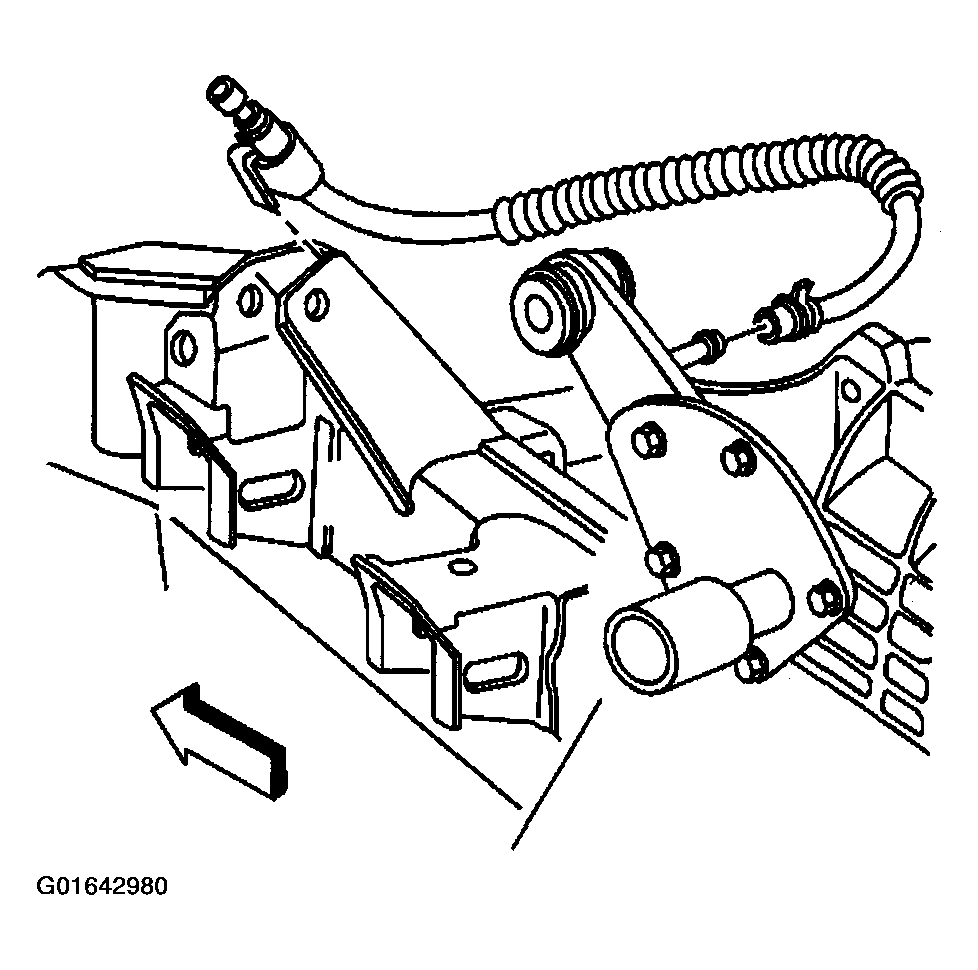

   Fig 1: Installing Vent Hose To Frame

   Courtesy of GENERAL MOTORS CORP.
