Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the fill plug and the washer.

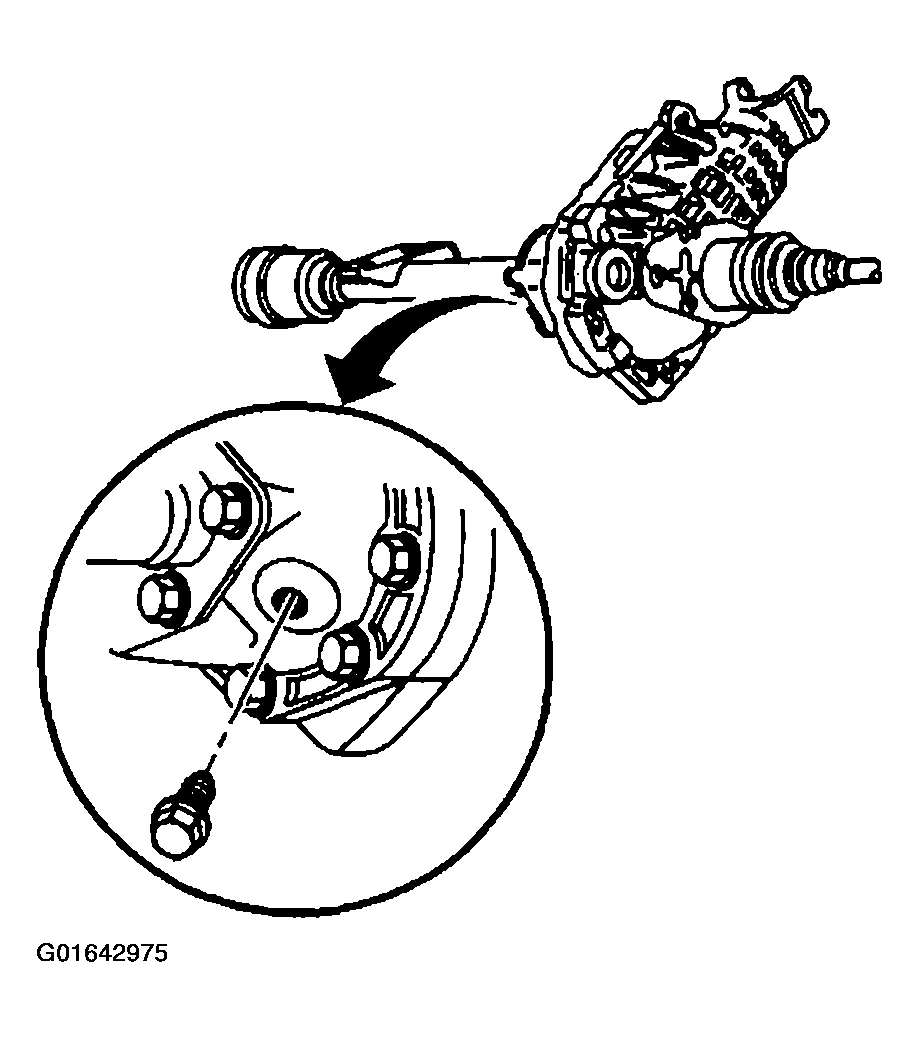

    Fig 1: Front Drive Axle Fill Plug & Washer
    G01642975Courtesy of GENERAL MOTORS CORP.
  3. Remove the drain plug and the washer.

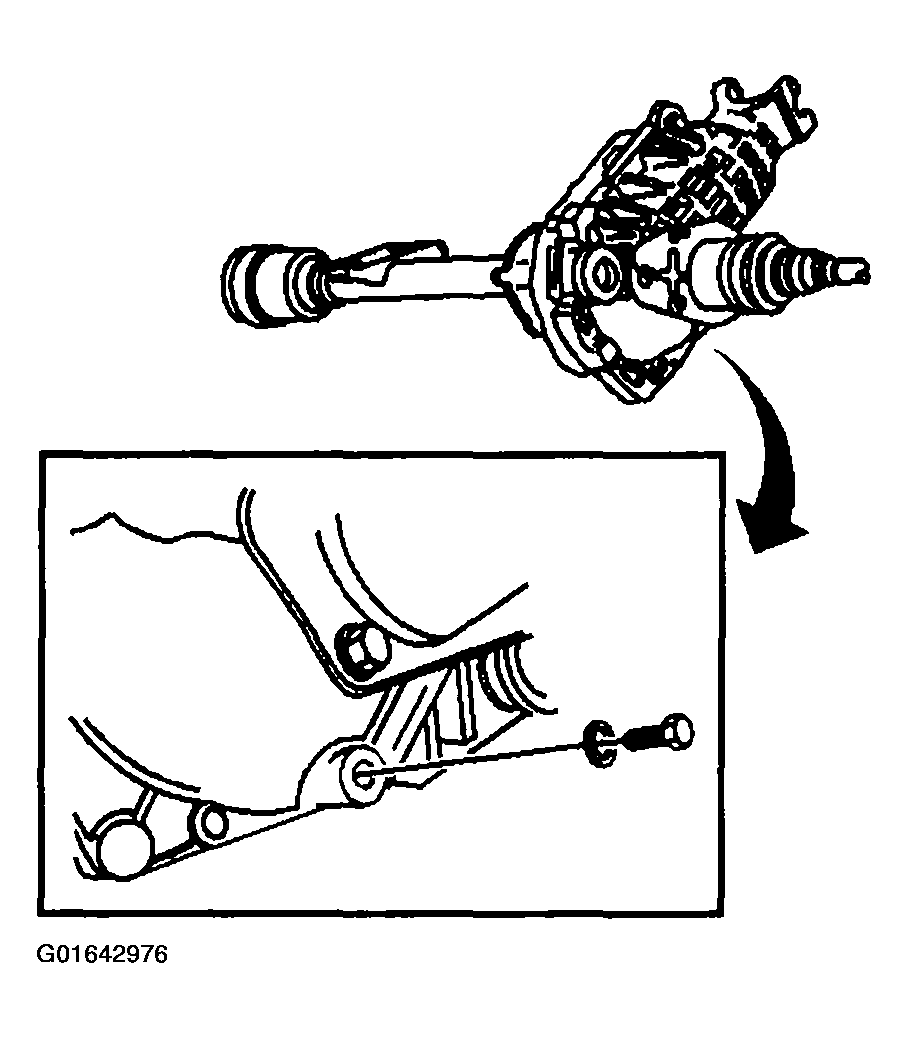

    Fig 2: Front Drive Axle Drain Plug & Washer
    G01642976Courtesy of GENERAL MOTORS CORP.
  4. Drain the fluid from the front axle differential.
