Lubricant Replacement - Front Drive Axle: Installation

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the drain plug and the washer.

    Tighten

    Tighten the drain plug to 33 N.m (24 lb ft).

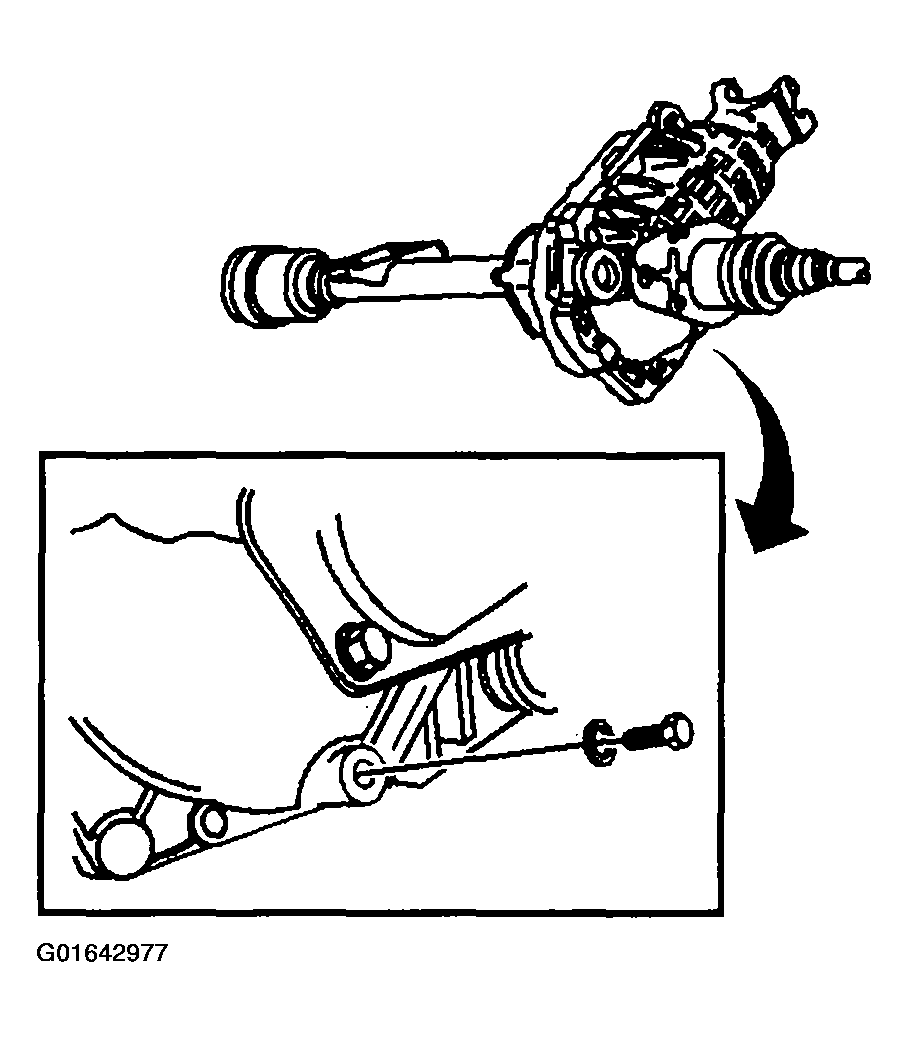

    Fig 1: Front Drive Axle Drain Plug & Washer
    G01642977Courtesy of GENERAL MOTORS CORP.
  2. Fill the front differential with lubricant. Use the proper fluid. Refer to CAPACITIES - APPROXIMATE FLUID and FLUID AND LUBRICANT RECOMMENDATIONS in Maintenance and Lubrication.
  3. Install the fill plug ad the washer.

    Tighten

    Tighten the fill plug to 33 N.m (24 lb ft).

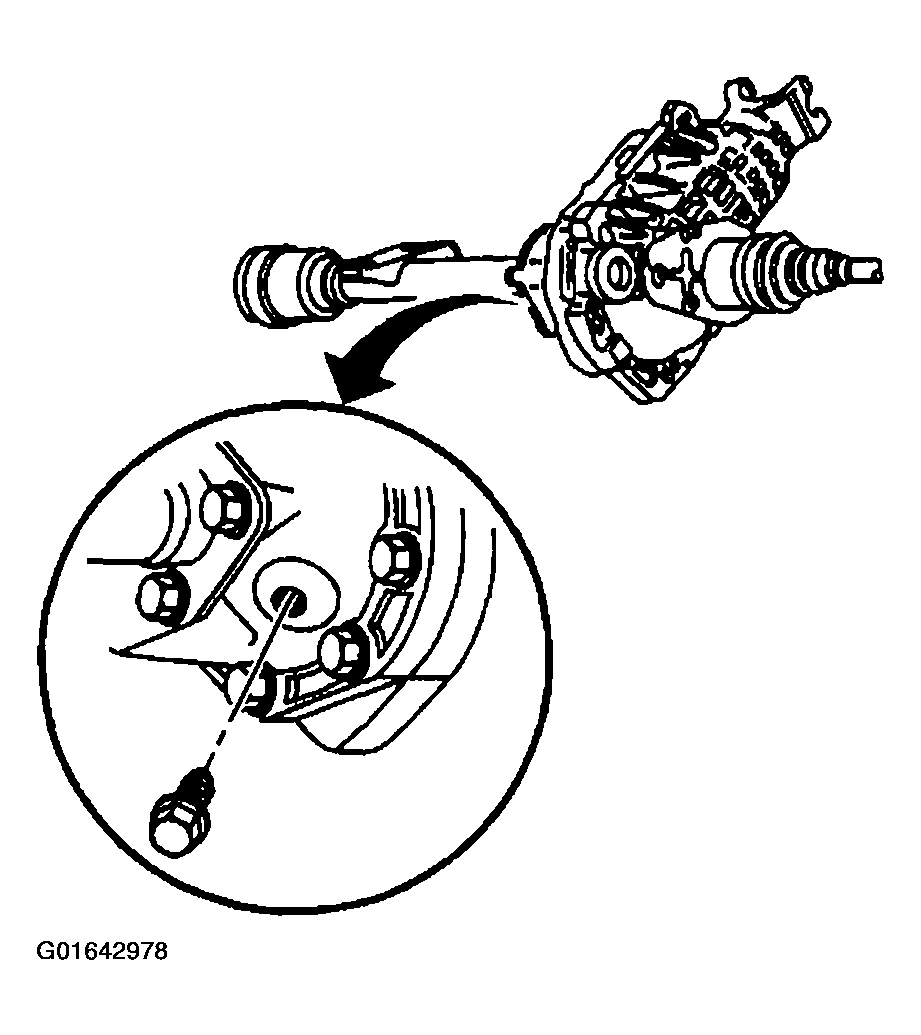

    Fig 2: Front Drive Axle Fill Plug & Washer
    G01642978Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
