Lubricant Level Inspection - Front Drive Axle

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Ensure the vehicle is level.
  3. Clean the area around the front axle fill plug.
  4. Remove the front axle fill plug and the washer.

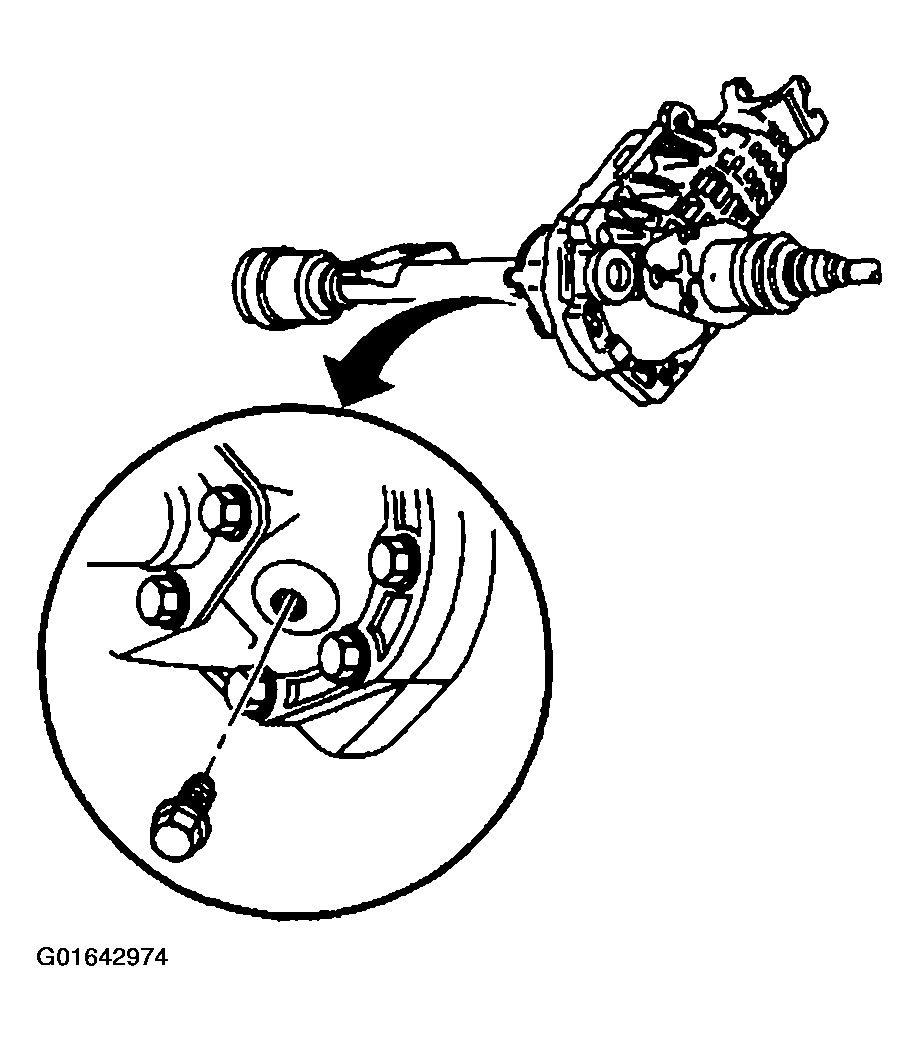

    Fig 1: Front Drive Axle Fill Plug & Washer
    G01642974Courtesy of GENERAL MOTORS CORP.
  5. Inspect the oil level.

    Specification

    The oil level should be between 0-13 m (0-0.5 in) below the fill plug opening.

  6. If the level low, add oil until the level is even with the bottom edge of the fill plug opening. Use the proper fluid. Refer to FLUID AND LUBRICANT RECOMMENDATIONS in Maintenance and Lubrication.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the fill plug and the washer.

    Tighten

    Tighten the plug to 33 N.m (24 lb ft).

  8. Lower the vehicle.
