Low Flank Contact Pattern: Correction

Decrease the pinion depth. Move the pinion gear away from the ring gear by decreasing the pinion shim thickness. Refer to DIFFERENTIAL CARRIER ASSEMBLY - ASSEMBLE .

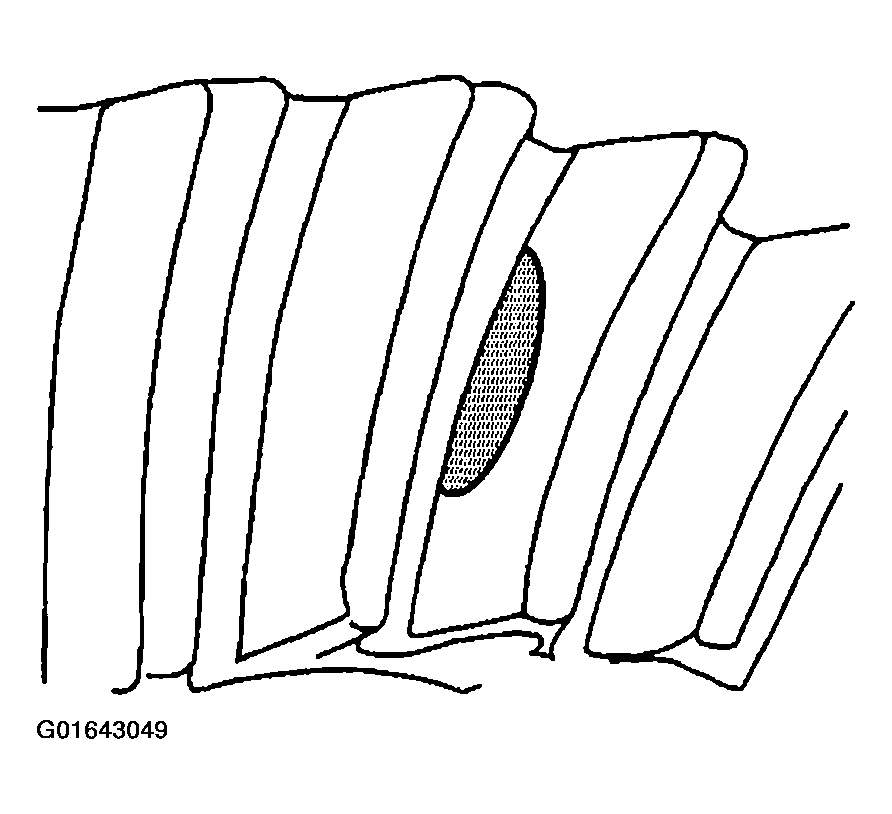

Fig 1: Inspecting Low Flank Contact Pattern

Courtesy of GENERAL MOTORS CORP.
