High Flank Contact Pattern: Correction

Increase the pinion depth. Move the pinion gear closer to the ring gear by increasing the pinion shim thickness. Refer to DIFFERENTIAL CARRIER ASSEMBLY - ASSEMBLE .

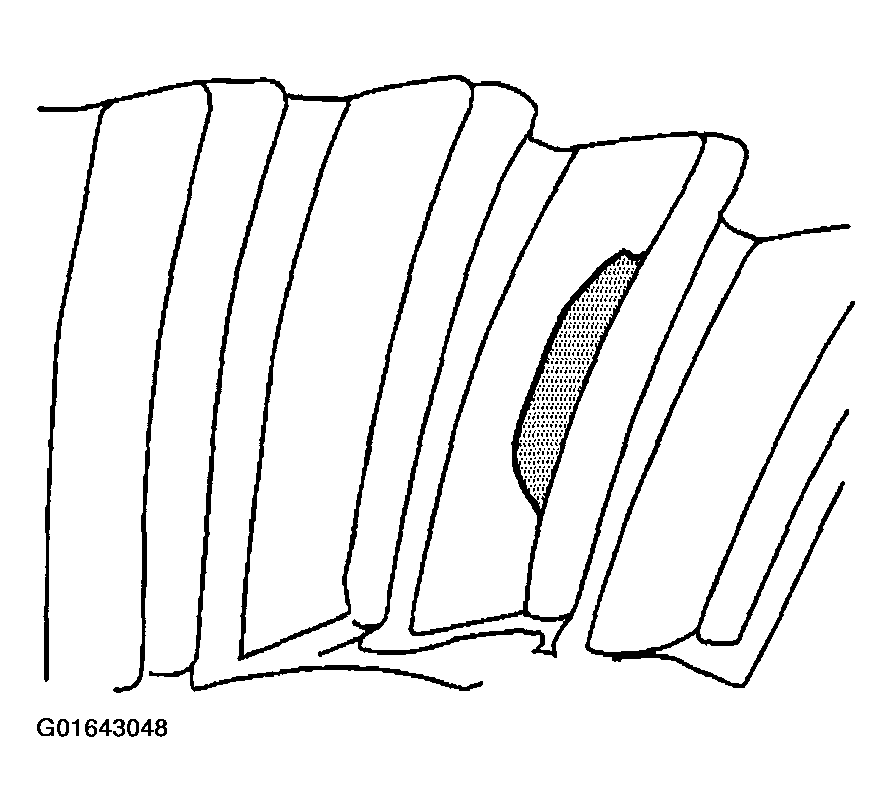

Fig 1: Inspecting High Flank Contact Pattern
G01643048Courtesy of GENERAL MOTORS CORP.
