Removal Procedure

  1. Remove the differential carrier assembly, Refer to DIFFERENTIAL CARRIER ASSEMBLY REPLACEMENT .
  2. Remove the carrier bushing using the J 33791  .

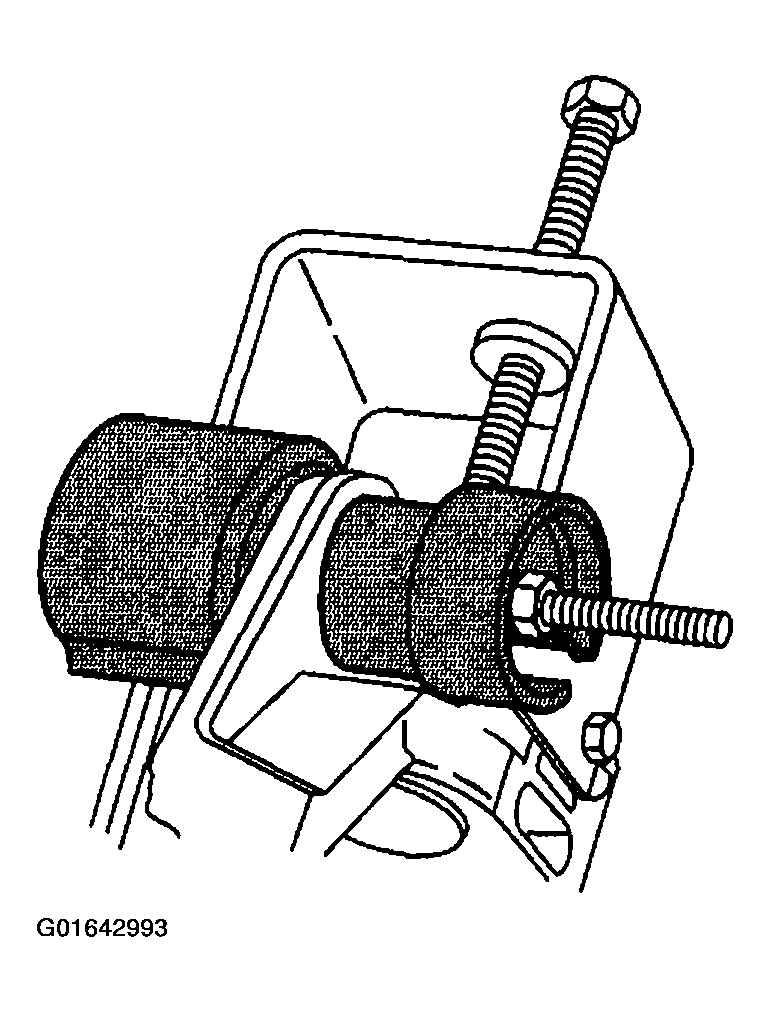

    Fig 1: Removing Carrier Bushing Using J 33791
    G01642993Courtesy of GENERAL MOTORS CORP.
