Wheel Bearing Wear - Front Drive Axle (Tapered): Indentations

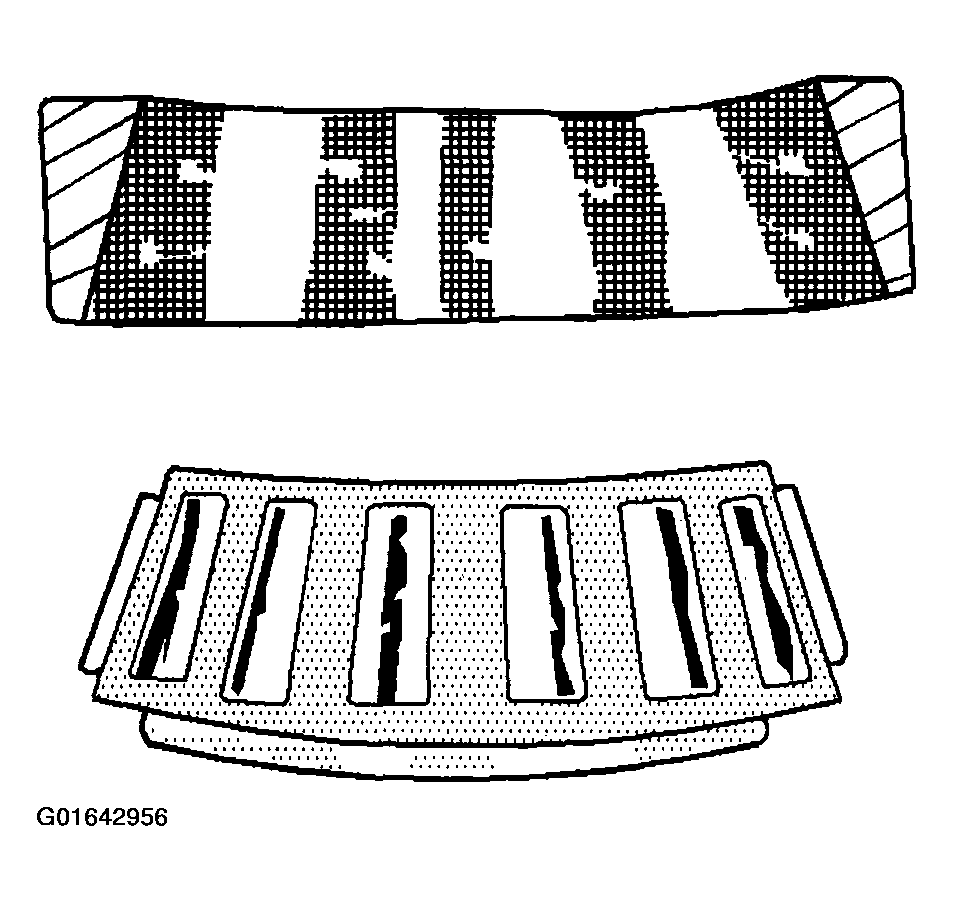

Fig 1: Tapered Roller Bearing Wear - Indentations
G01642956Courtesy of GENERAL MOTORS CORP.

Surface depressions on the race and the rollers caused by hard particles of foreign matter. Clean all the parts and the housings. Check the seals. Replace rough or noisy bearings.
