Wheel Bearing Wear - Front Drive Axle (Tapered): Etching

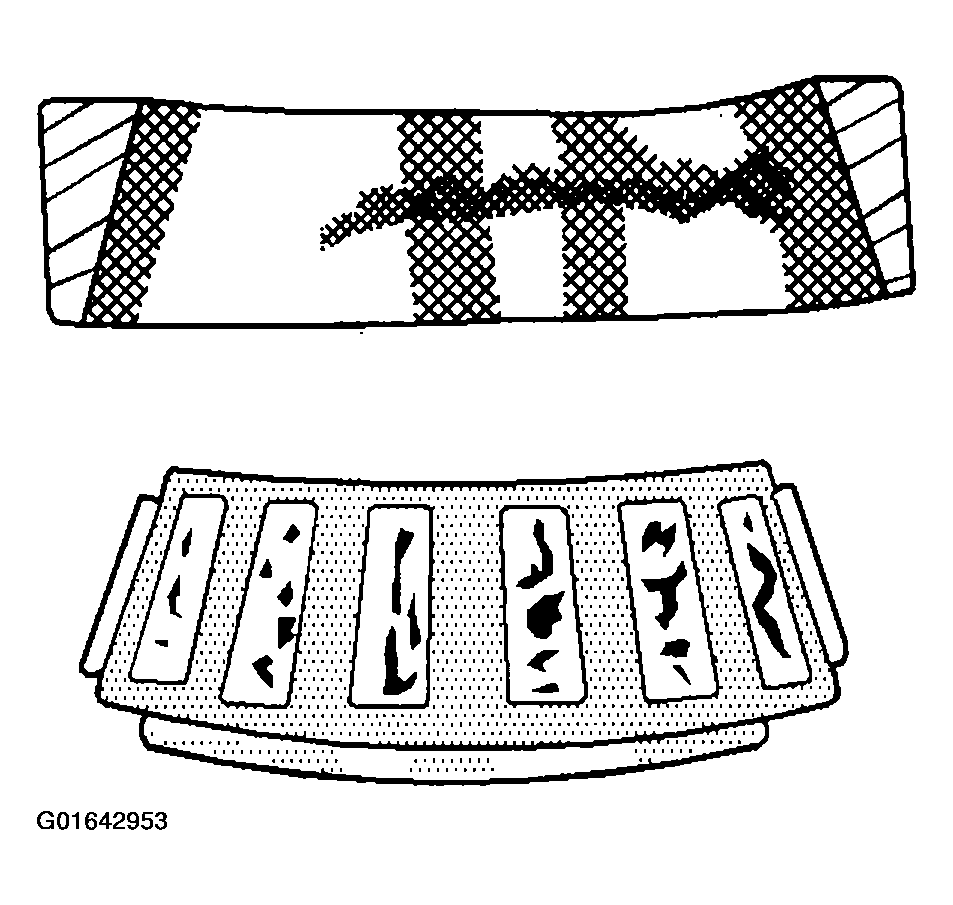

Fig 1: Tapered Roller Bearing Wear - Etching

Courtesy of GENERAL MOTORS CORP.

Bearing Surfaces appear gray or grayish black in color, with related etching away of material usually at roller spacing. Replace the bearings. Check the seals. Check for proper lubrication.
