Cracked Inner Race

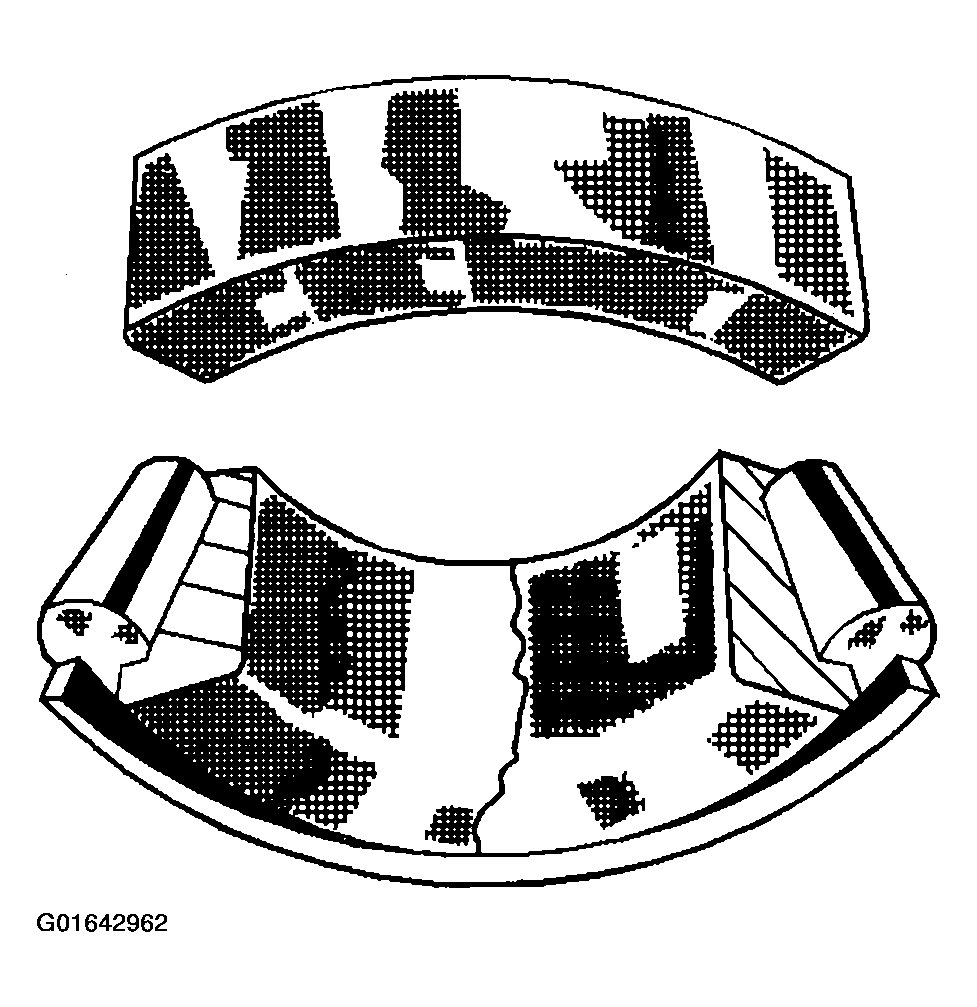

Fig 1: Tapered Roller Bearing Wear - Cracked Inner Race

Courtesy of GENERAL MOTORS CORP.

Cracked race due to improper fit, cocking, or poor bearing sets. Replace the bearing. Correct bearing seats.
