Cage Wear

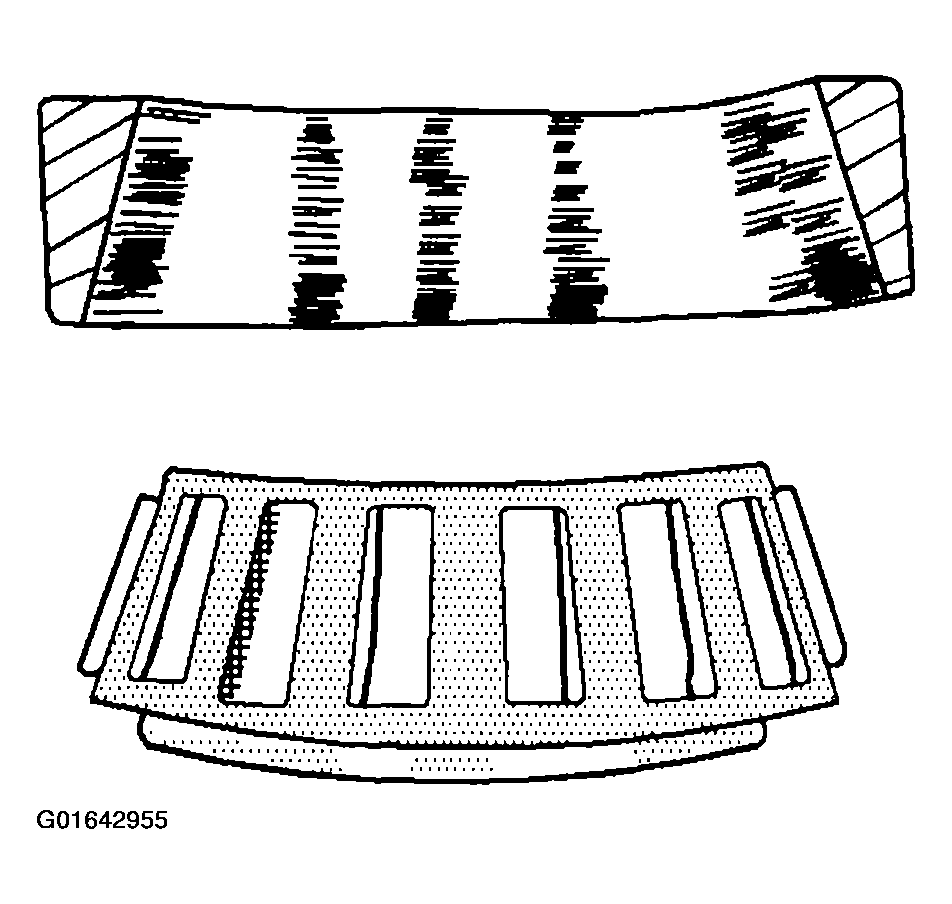

Fig 1: Tapered Roller Bearing Wear - Cage Wear
G01642955Courtesy of GENERAL MOTORS CORP.

Wear around the outside diameter of the cage and the roller pockets caused by abrasive material. Wear caused from inefficient lubrication. Clean the related parts and the housings. Check the seals. Replace the bearings.
