Bent Cage

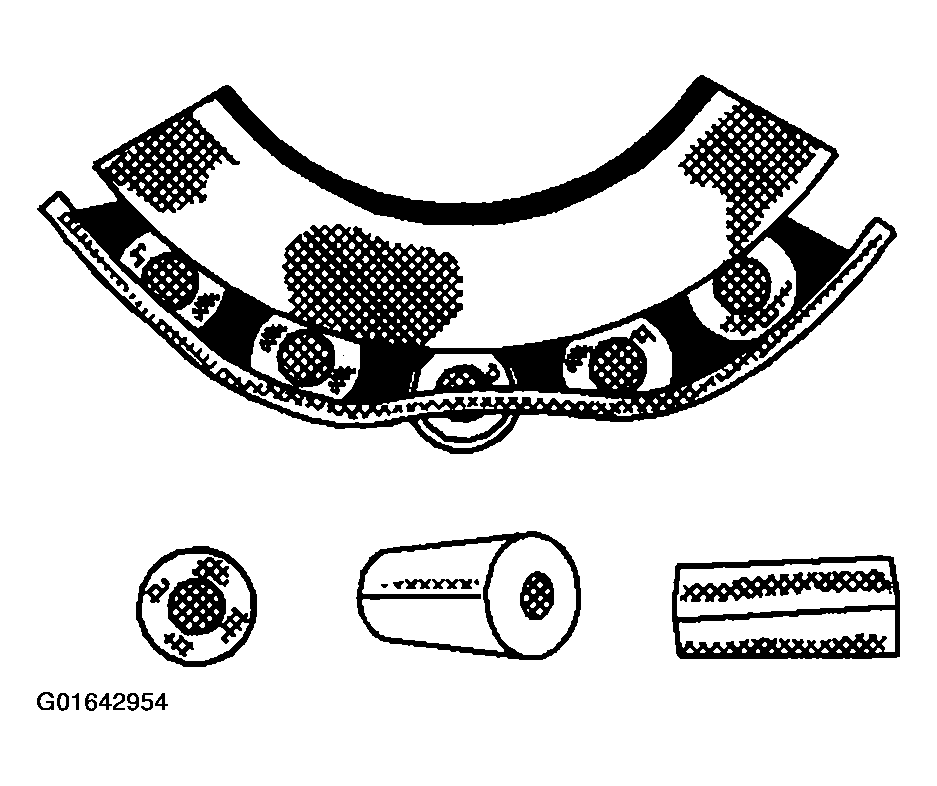

Fig 1: Tapered Roller Bearing Wear - Bent Cage

G01642954

Courtesy of GENERAL MOTORS CORP.

A damaged cage due to improper handling or improper tool usage. Replace the bearing.
