Abrasive Roller Wear

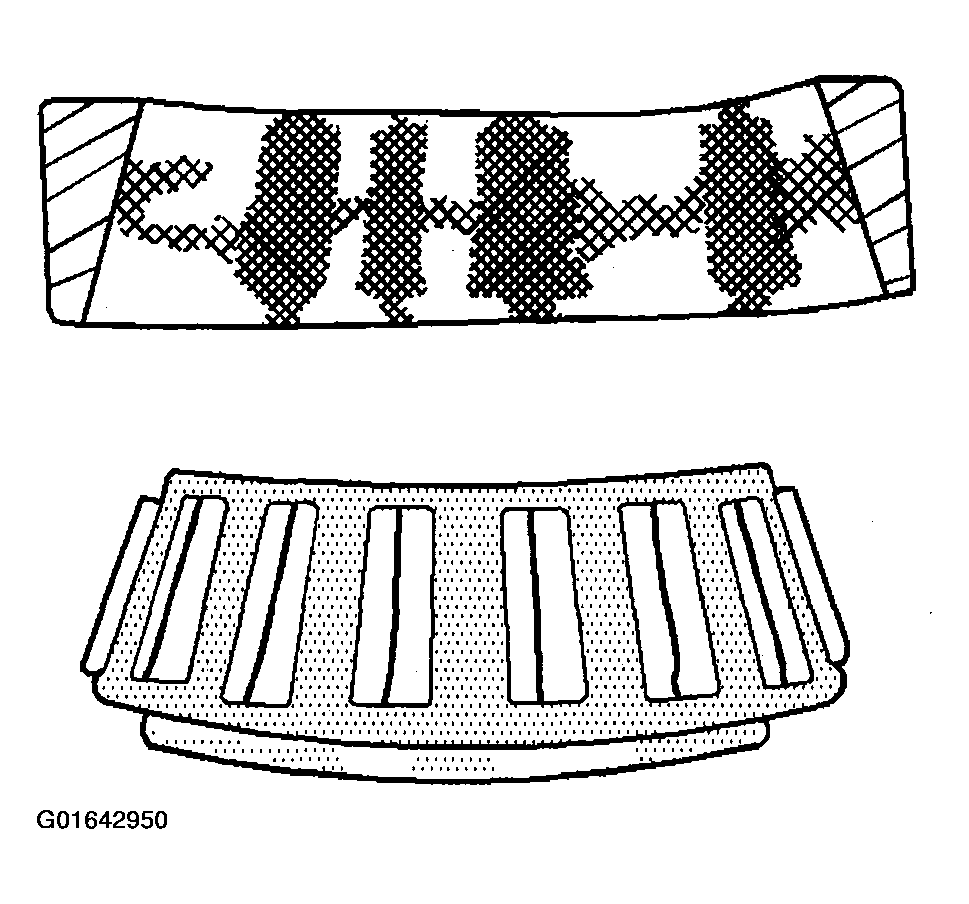

Fig 1: Tapered Roller Bearing Wear - Abrasive Roller Wear

Courtesy of GENERAL MOTORS CORP.

Pattern on the races and the rollers caused by fine abrasives. Clean all of the parts and the housings. Check the seals and the bearings. Replace any leaky, rough, or noisy bearings.
