Wheel Bearing Wear - Front Drive Axle (Straight): Brinelling

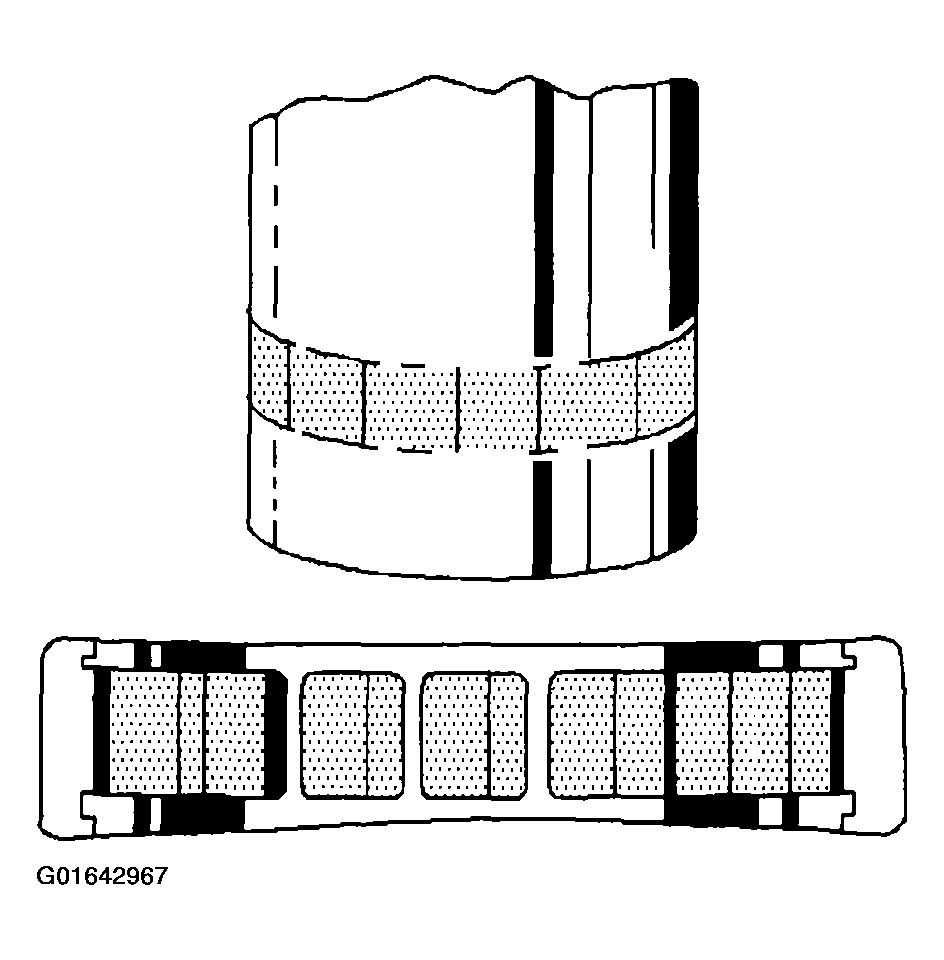

Fig 1: Straight Roller Bearing Wear - Brinelling
G01642967Courtesy of GENERAL MOTORS CORP.

Surface indentations in the raceway can be caused by roll either under impact loading or vibration while the bearing is not rotating. Replace the bearing if rough or noisy. Replace the shaft if damaged.
